Country of Origin
Mexico
Shipping Weight
0.13 pounds
Manufacturer P/N

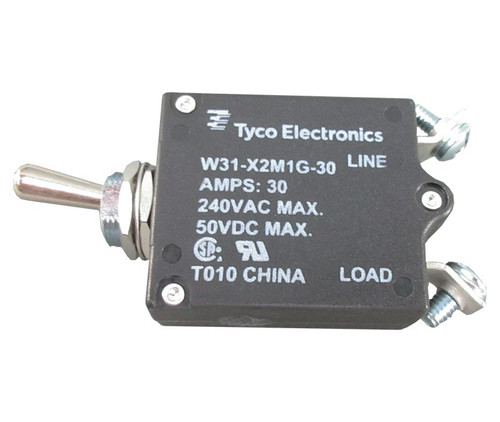

W31-X2M1G-30
Schedule B Code
8536.20.0040
Body Style: Single Pole Type Bushing Length: 0.335 Inches Nominal Body Length: 1.375 Inches Nominal Body Width: 0.690 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 1.020 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 2.035 Inches Nominal Pole Quantity: 1 Arc Quenching Method: Air Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 30.0 Amperes Ac Single Location And 30.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 250.0 Ac Single Location And 50.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 1000.0 Ac Single Location And 1000.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 135.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual Actuator Type And Quantity: 1 Toggle Actuator Function: Trip-Reset Actuator Position Designation: At Pole One Internal Trip Release Configuration: Series Trip Single Location Nominal Thread Size: 0.469 Inches Trip Delay Time In Seconds Per Rated Continuous Current: 6.000 Minimum At 200 Pct Single Location And 22.000 Maximum At 200 Pct Single Location Inclosure Protection Type For Which Designed: Humidity Proof And Salt Spray Proof And Shockproof And Vibrationproof Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal Single Location Frequency In Hertz: 400.0 Single Location Unpackaged Unit Weight: 2.000 Ounces Thread Series Designator: Uns Terminal Type And Quantity: 2 Tab W/Screw
