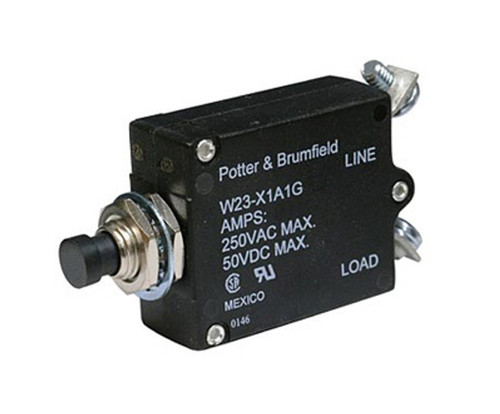

Potter & Brumfield W23-X1A1G-10 Push/Pull Circuit Breaker - 10 AMP

The W23 is UL 1077 Recognized as Supplementary Protectors, File E69543, and CSA Certified as Appliance Component Protectors, File LR15734.

Product Type Features:

• Product Type = Circuit Breaker

• Actuator Style = Push/Pull

• Button Color = Black with White Amp Rate Marking and White Trip Band

• Termination Type = 8-32 Screws 90° to Each Other (Screws and Washers Installed)

Electrical Characteristics:

• Current Rating (A) = 10

• Operating Voltage, Max. = 50 VDC, 250 VAC

Body Related Features:

• Series = W23

Contact Related Features:

• Number of Poles = 1

• Trip Time at 200% = 6 to 22 Seconds

• Interrupt Capacity = 2,000 A @ 50 VDC or 1,000 A @ 250 VAC

• Mounting Options = Two Hex Nuts/Lockwasher

• Mounting Bushing = 3/8"-24 Threaded Bushing .375" [9.53 mm] Long, Silver Color

Configuration Related Features:

• Circuit Function = Series Trip
