Approvals and Conformities
NSN
5306-01-316-1460
Product Attributes
Country of Origin
United States
Shipping Weight
0.1 pounds
ECCN
9A991.d
Color Family
Gold
Manufacturer P/N
NAS6606-36
Schedule B Code
7318.15.2000
Pack Quantity
1
Ship Dimensions
4 x 1 x 1 inches
Series
NAS6606
Length
2.719"
Grip
2.250"
Shank
Undrilled
Head
Undrilled
Color
Gold
Material
Alloy Steel

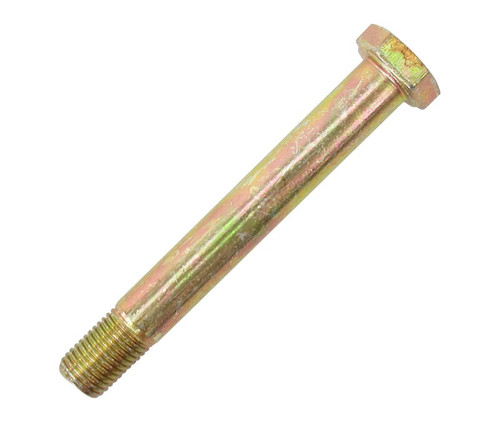

NAS6606-36, as the name suggests, is a close tolerance bolt made of steel; it has a hexagon head. This bolt conforms to the following specifications: MIL-S-5000, MIL-S-6049, and AMS 6322. Check the features for more information.
Features
- Material: Steel
- Thread Series Designator: UNJF
- Nominal Thread Diameter (inches): .375
- Thread Quantity (per inch): 24
- Thread Class: 3A
- Thread Length Range (inches): .553 to .603
- Fastener Length Range (inches): 2.813 to 2.843
- Surface Treatment: Cadmium
- Surface Treatment Classification QQ-P-416, Type 2, Class 2
- Minimum Tensile Strength (lbs per sq. inch): 160000
- Head Style: C3 Hexagon (dished)
- Head Height Range (inches): .188 to .203
- Width Range Between Flats (inches): .554 to .564
- Grip Length Range (inches): 2.240 to 2.260
- Grip Diameter Range (inches): .3735 to .3745
