Country of Origin
United States
Shipping Weight
0.01 pounds
Manufacturer P/N
NAS513-4
Schedule B Code
7318.21.0000

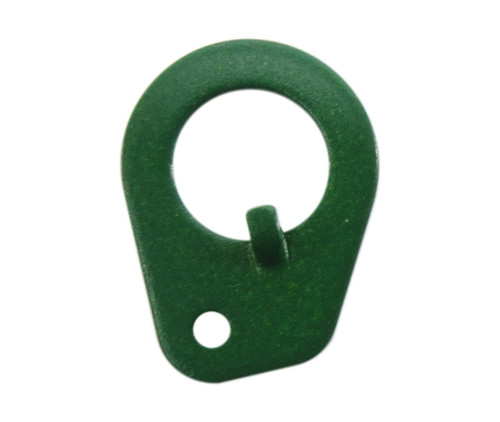

Hole Diameter: 0.267 Inches Minimum And 0.277 Inches Maximum Outside Diameter: 0.440 Inches Minimum And 0.460 Inches Maximum Internal Prebent Key Width: 0.047 Inches Minimum And 0.057 Inches Maximum Material Thickness: 0.050 Inches Nominal Minimum Tensile Strength: 18000 Pounds Per Square Inch Hardness Rating: 40.0 Rockwell C Minimum And 45.0 Rockwell C Maximum Distance From Key Center To Wire Hole Center: 0.122 Inches Minimum And 0.128 Inches Maximum Wire Hole Diameter: 0.062 Inches Nominal Iii Material: Steel Comp 1095 Overall Material Document And Classification: Mil-S-7947,Cond A Mil Spec Single Material Response Overall Surface Treatment: Cadmium Overall And Chromate Overall Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall Style Designator: Internal Prebent Key Specification/Standard Data: 80205-Nas513 Professional/Industrial Association Standard
