Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
NAS1870-3-2
Schedule B Code
7318.16.0000

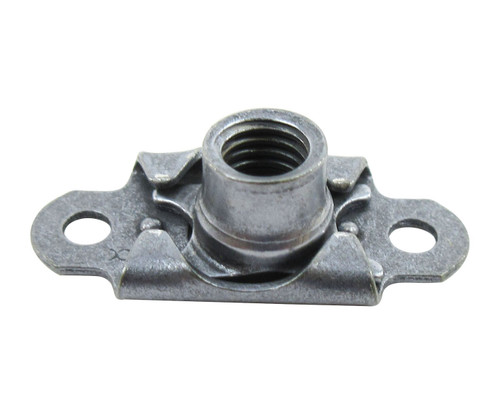

Thread Class: 3B Thread Direction: Right-Hand Mounting Hole Diameter: 0.980 Inches Minimum And 0.985 Inches Maximum Nut Style: Plate Nut Length: 0.940 Inches Maximum Nut Height: 0.125 Inches Minimum And 0.272 Inches Maximum Plate Thickness: 0.020 Inches Minimum And 0.030 Inches Maximum Plate Width: 0.416 Inches Maximum Nut Mounting Provision: Straight Holes Mounting Hole Arrangement Style: 2 Holes Distance From Aperture Center To Mounting Hole Center: 0.339 Inches Minimum And 0.349 Inches Maximum Center To Center Distance Between Mounting Holes Along Length: 0.686 Inches Minimum And 0.690 Inches Maximum Thread Series: UNF Thread Quantity Per Inch: 32 Nominal Thread Size: 0.190 Inches Material: Steel Overall Surface Treatment: Cadmium Overall
