Country of Origin
United States
Shipping Weight
0.012 pounds
Manufacturer P/N

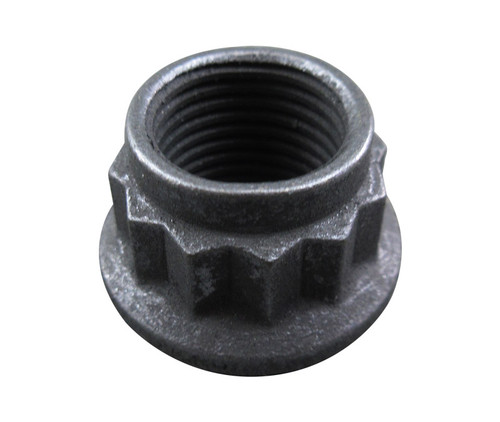

NAS1804-9
Thread Class: 3B Thread Direction: Right-Hand Locking Feature: Prevailing Torque All Metal Design Washer Outside Diameter: 0.926 Inches Maximum Lubrication: Dry Film Lubricant Overall Height: 0.562 Inches Maximum Nut Style: Double Hexagon Washer Thickness: 0.079 Inches Nominal Width Across Flats: 0.679 Inches Minimum And 0.690 Inches Maximum Temp Rating: 450.0 Deg Fahrenheit Maximum Thread Series: Unjf Thread Quantity Per Inch: 18 Hardness Rating: 45.0 Rockwell C Maximum Nominal Thread Size: 0.562 Inches Material: Steel Comp 601 Overall Or Steel Comp H11 Overall Material Document And Classification: Ams 6304 Assn Std 1St Material Response Overall Or Ams 6487 Assn Std 2Nd Material Response Overall Surface Treatment: Cadmium Overall Surface Treatment Document And Classification: Qq-P-416,Class 2 Fed Spec Single Treatment Response Overall Specification/Standard Data: 80205-Nas1804 Professional/Industrial Association Standard
