Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N
NAS1153E9
Schedule B Code
7318.15.2000

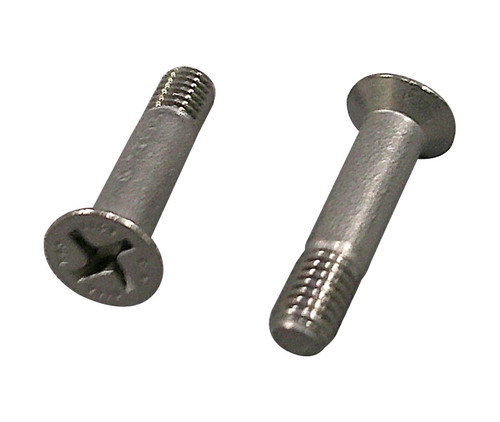

Thread Class: 3A\r\n Thread Direction: Right-Hand\r\n Thread Length: 0.251 Inches Minimum And 0.301 Inches Maximum\r\n Fastener Length: 0.823 Inches Minimum And 0.853 Inches Maximum\r\n Head Style: Flat Countersunk\r\n Head Diameter: 0.328 Inches Minimum And 0.385 Inches Maximum\r\n Grip Diameter: 0.1885 Inches Minimum And 0.1895 Inches Maximum\r\n Internal Drive Style: Offset Cruciform (Torque Set)\r\n Nominal Thread Diameter: 0.190 Inches\r\n Grip Length: 0.552 Inches Minimum And 0.572 Inches Maximum\r\n Thread Quantity Per Inch: 32\r\n Minimum Tensile Strength: 160000 Pounds Per Square Inch\r\n Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum\r\n Surface Finish: 32.0 Microinches Threads\r\n Surface Finish: 32.0 Microinches Grip\r\n Material: Iron Alloy 660 Overall\r\n Material Document And Classification: Ams 5737 Assn Std Single Material Response Overall\r\n Surface Treatment: Passivate Overall\r\n Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response Overall\r\n Thread Series Designator: Unjf\r\n Specification/Standard Data: 80205-Nas1153 Professional/Industrial Association Standard\r\n
