Country of Origin
United States
Shipping Weight
1.2 pounds
Manufacturer P/N
NAS1097AD5-14
Schedule B Code
7616.10.3000
Material
2117-T4 Aluminum Alloy

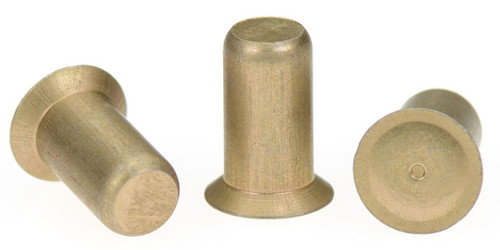

Fastener Length: 0.865 Inches Minimum And 0.885 Inches Maximum Head Style: Undersized Oval Countersunk Head Height: 0.003 Inches Minimum And 0.005 Inches Maximum Shank Diameter: 0.155 Inches Minimum And 0.158 Inches Maximum Shank Style: Straight Head Major Diameter: 0.240 Inches Minimum And 0.247 Inches Maximum Head Minor Diameter: 0.185 Inches Minimum And 0.195 Inches Maximum Countersink Height: 0.037 Inches Nominal Grip Length: 0.641 Inches Nominal Shear Strength: 26000 Single Pounds Per Square Inch Countersink Angle: 99.5 Degrees Minimum And 100.5 Degrees Maximum Material: Aluminum Alloy 2117 Overall Material Document And Classification: Qq-A-430 Fed Spec Single Material Response Overall Surface Treatment: Anodize Overall Or Oxide Film Overall Surface Treatment Document And Classification: Mil-A-8625 Mil Spec 1St Treatment Response Overall Or Mil-C-5541 Mil Spec 2Nd Treatment Response Overall Specification/Standard Data: 80205-Nas1097 Professional/Industrial Association Standard
