Country of Origin
United States
Shipping Weight
0.025 pounds
Manufacturer P/N
NAS1102-08-5
Schedule B Code
7318.15.2000

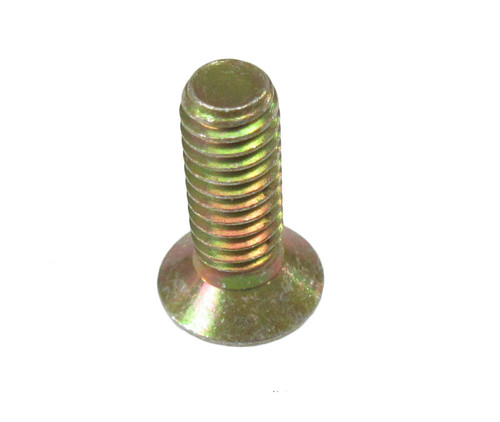

Thread Class: 3A Thread Direction: Right-Hand Thread Length: 0.250 Inches Minimum And 0.312 Inches Maximum Fastener Length: 0.281 Inches Minimum And 0.312 Inches Maximum Head Style: Flat Countersunk Head Diameter: 0.270 Inches Minimum And 0.332 Inches Maximum Internal Drive Style: Torque Set Nominal Thread Diameter: 0.164 Inches Thread Quantity Per Inch: 32 Minimum Tensile Strength: 160000 Pounds Per Square Inch Hardness Rating: 36.0 Rockwell C Minimum And 40.0 Rockwell C Maximum Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum Screw Material: Steel Comp E4340 Or Steel Comp 8740 Or Steel Comp 8735 Or Steel Comp 6150 Or Steel Comp 4140 Or Steel Comp 4037 Screw Surface Treatment: Cadmium And Chromate Screw Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses Thread Series Designator: Unc
