Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
MS51831-202L
Schedule B Code
9606.10.0000
Ship Dimensions
1 x 1 x 1 inches

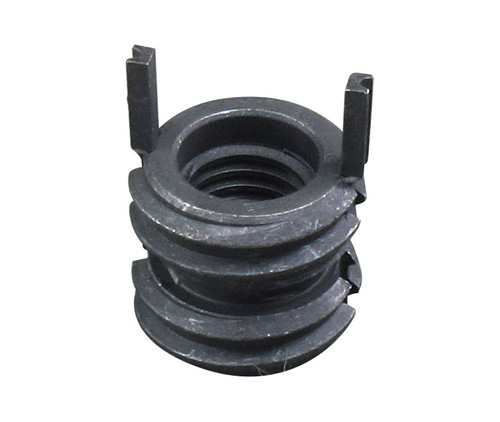

Thread Class: 3B Thread Direction: Right-Hand Thread Length: 0.305 Inches Nominal Length: 0.375 Inches Nominal End Item Identification: W/S: Aircraft (Ac-130H, Mc-130H, Ec-130E, Hc-130); Missile, Air-To-Air, Phoenix (Aim-54); Pave Tack System; Missile, Tomahawk; Engine, Aircraft, F110-Ge/100/129 (F-16 C/D); Support Equipment, B-1 Aircraft; Missile, All-Weather Anti-Ship, Harpoon (Agm-84);Engine, Aircraft F110-Ge-400; Helicopter, Advance Attack, Ah-1W Insert Size: 0.437 In.-14 Internal Thread Relief Depth: 0.070 Inches Nominal Full Internal Thread Length: 0.305 Inches Nominal Features Provided: Individually Keyed Thread Quantity Per Inch: 28 Nominal Thread Size: 0.250 Inches Special Features: Has Internal Thread Lock Material: Steel Corrosion Resisting Overall Material Document And Classification: Ams 5640 Comp 303/303E Assn Std Single Material Response Overall Or Stm A582 Comp 303/303E Assn Std Single Material Response Overall Surface Treatment: Passivate Overall Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response Overall Style Designator: Keylock Thread Series Designator: UNF
