Approvals and Conformities
NSN
5310-00-045-4007
Alternate PN#s
MS35338-1, 938.81.12.103, 753-218, AN935-6, AN935-6L, AN935C6
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
MS35338-41
Schedule B Code
7318.15.2000
Pack Quantity
1
Ship Dimensions
4 x 3 x 0 inches
Series
MS35338
Outside Diameter
.047"
Inner Diameter
.141"
Material
Crescent Steel

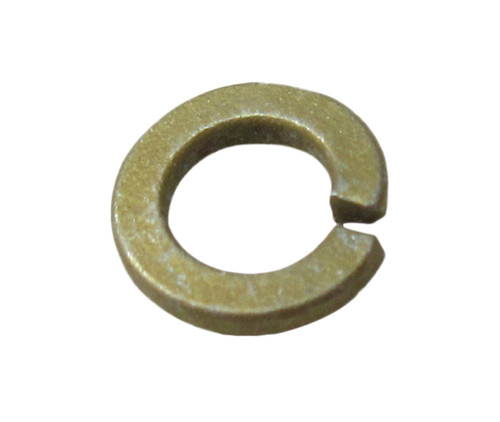

MS35338-41s are #6 steel split lockwashers with a zinc chromate (zinc yellow) used as a corrosion resistant agent. Hole Diameter:\t0.141 Inches Minimum And 0.148 Inches Maximum\n Outside Diameter:\t0.250 Inches Maximum\n Material Thickness:\t0.031 Inches Minimum And 0.037 Inches Maximum\n Hardness Rating:\t45.0 Rockwell C Minimum And 53.0 Rockwell C Maximum\n Material:\tSteel Overall\n Material Document And Classification:\tFed Std 66,Aisi C1060 Thru C1080 Or Sae 1060 Thru 1080 Fed Std All Material Responses Overall\n Surface Treatment:\tCadmium Overall\n Surface Treatment Document And Classification:\tQQ-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall\n Style Designator:\tSplit Helical-Right Hand
Ever wondered what the MS refers to in many parts numbers? SkyGeek does and because we are geeks, it's in our nature to find out. It stands for Military Standard, which means the part has been both tested and certified by US Armed Forces and has met or exceeded such standards. Pretty cool, huh? If the military approves then so do we and so will you.
