Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N

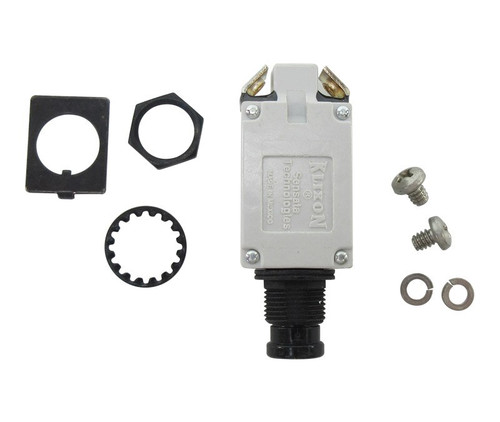

MS26574-2
Body Style: Single Pole Type Bushing Length: 0.359 Inches Nominal Body Length: 0.780 Inches Maximum Body Width: 0.580 Inches Maximum Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.593 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.420 Inches Maximum Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Special Handling Feature: Magnetic Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 2.0 Amperes Ac Single Location And 2.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 200.0 Ac Single Location And 28.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 800.0 Ac Single Location And 800.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Magnetic-Hydraulic Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 125.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual Actuator Type And Quantity: 1 Push-Pull Actuator Function: Reset Actuator Position Designation: At Pole One Internal Trip Release Configuration: Series Trip Single Location Nominal Thread Size: 0.437 Inches Trip Delay Time In Seconds Per Rated Continuous Current: 2.000 Minimum At 200 Pct Single Location And 20.000 Maximum At 200 Pct Single Location Inclosure Protection Type For Which Designed: Explosion Proof Frequency In Hertz: 400.0 Single Location Test Data Document: 96906-Ms26574 Standard (Includes Industry Or Association Standards, Individual Manufactureer Standards, Etc.). Thread Series Designator: Uns Terminal Type And Quantity: 2 Screw
