Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N
MS24665-153
Schedule B Code
7318.24.0000
Ship Dimensions
1 x 1 x 1 inches

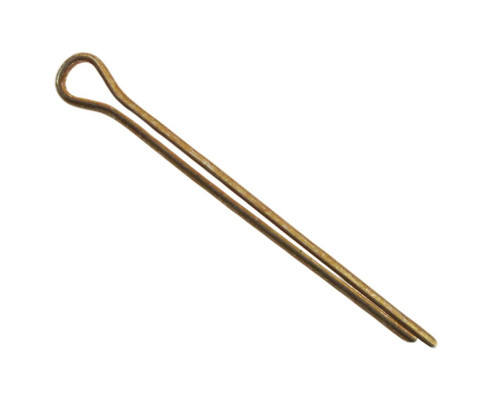

Diameter: 0.056 Inches Minimum And 0.060 Inches Maximum Underloop Length: 0.688 Inches Minimum And 0.875 Inches Maximum Point Type: Extended Prong Square Cut Or Hammer Lock Hardness Rating: 65.0 Rockwell Superficial 15-N Minimum Overall And 78.0 Rockwell Superficial 15-N Maximum Overall Material: Steel Comp 302 Overall Or Steel Comp 304 Overall Material Document And Classification: Astm A493 Assn Std Single Material Response Overall Surface Treatment: Passivate Overall Special Test Features: Special Quality Control Testing Surface Treatment Document And Classification: Astm A380 Assn Std Single Treatment Response Overall Style Designator: Standard Test Data Document: 81349-Mil-P-23199 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Nondefinitive Spec/Std Data: C Type Departure From Cited Designator: As Differentiated By Material Which Must Conform To Ships Parts Control Center Special Quality Control Provisions
