Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
MS21061L4
Schedule B Code
7318.16.0000

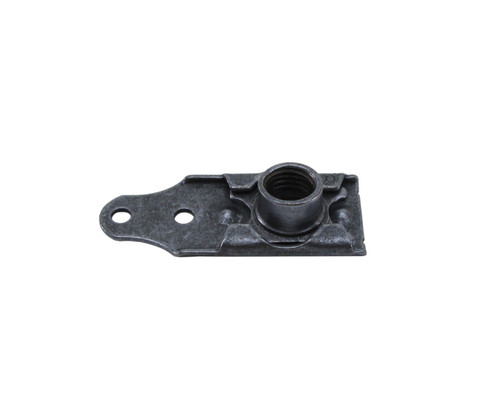

Thread Class: 3B Thread Direction: Right-Hand Locking Feature: Prevailing Torque All Metal Design Lubrication: Dry Film Lubricant Mounting Hole Diameter: 0.098 Inches Minimum And 0.103 Inches Maximum Nut Style: Plate Nut Length: 1.306 Inches Maximum Nut Height: 0.281 Inches Maximum Plate Thickness: 0.032 Inches Maximum Plate Width: 0.350 Inches Minimum And 0.531 Inches Maximum Nut Mounting Provision: Straight Holes Mounting Hole Arrangement Style: 2 Holes Distance From Aperture Center To Mounting Hole Center: 0.495 Inches Minimum And 0.505 Inches Maximum Center To Center Distance Between Mounting Holes Along Length: 0.310 Inches Minimum And 0.314 Inches Maximum Temp Rating: 450.0 Deg Fahrenheit Nominal Thread Series: Unjf Features Provided: Floating Nut Thread Quantity Per Inch: 28 Hardness Rating: 49.0 Rockwell C Maximum Nominal Thread Size: 0.250 Inches Material: Steel Overall Surface Treatment: Cadmium Overall Surface Treatment Document And Classification: QQ-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
