Approvals and Conformities
NSN
5331-00-166-0990
MIL-SPEC#
MIL-R-83248
Alternate PN#s
AS3209-014, MS17413-014, J221P014, ST1000-14, ST3001-014
Product Attributes
Country of Origin
United States
Shipping Weight
0.075 pounds
ECCN
9A991.d
Color Family
Black
Manufacturer P/N
M83248/1-014
Schedule B Code
4016.93.0000
Pack Quantity
25
Ship Dimensions
1 x 1 x 1 inches
Series
M83248-1
Inside Diameter
1/2
Outside Diameter
5/8
Width
1/16
Color
Black
Material
Rubber

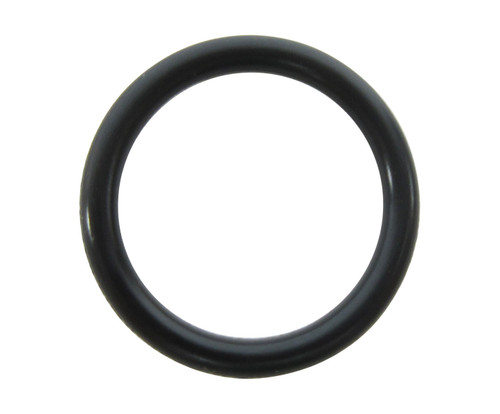

M83248/1-014, as the name suggest, is an O-ring composed of fluorocarbon rubber. It has a 1/2" inner diameter, a 5/8" outer diameter, and a 1/16" width As mentioned, M83248 series O-rings are made of fluorocarbon rubber (commonly known as Viton), which has extremely good fuel and heat resistance and is ideally suited for aircraft fuel system applications. This O-ring conforms to the following specification: MIL-R-83248. Check the features for more details.
