Country of Origin
United States
Shipping Weight
0.01 pounds
Manufacturer P/N

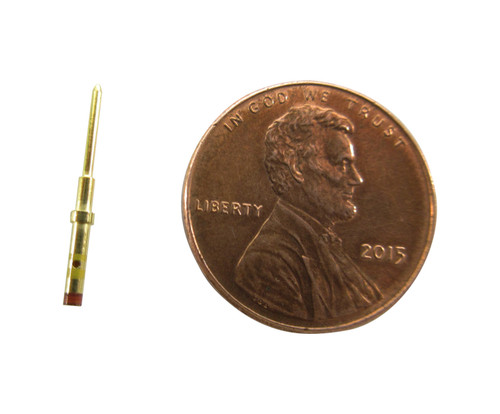

M39029/11-144
Schedule B Code
8538.90.7040
Identification Code Color: Brown And Yellow And Yellow Overall Length: 0.645 Inches Minimum And 0.665 Inches Maximum Pin Diameter: 0.029 Inches Minimum And 0.031 Inches Maximum Overall Diameter: 0.069 Inches Minimum And 0.071 Inches Maximum Cable Entrance Diameter: 0.043 Inches Minimum And 0.046 Inches Maximum Retention Groove Diameter: 0.047 Inches Minimum And 0.050 Inches Maximum Pin Length: 0.289 Inches Minimum And 0.290 Inches Maximum Mounting Method: Force Fit Crimping Tool Identifying Number: M22520/2-01 Special Features: Basic Item Identification Number 144 Material: Copper Alloy Body Material: Copper Alloy Contact Precious Material And Location: Body And Contact Surfaces Gold Precious Material And Weight: 0.005 Gold Grains, Troy Precious Material: Gold Surface Treatment: Gold Body And Contact Surface Treatment Document And Classification: Mil-G-45204,Type 1,Class 2,Grade C Mil Spec Single Treatment Response Body And Contact Iii Style Designator: Pin Contact Test Data Document: 81349-Mil-C-39029 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Terminal Type And Quantity: 1 Crimp Axially At One End Specification/Standard Data: 81349-Mil-C-39029/11 Government Specification
