Approvals and Conformities
MIL-SPEC#
MIL-W-22759/11-28-9
SAE Spec#
AS22759/11-28-9
Product Attributes
Country of Origin
United States
Size
28 AWG
Shipping Weight
5 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
M22759/11-28-9
Schedule B Code
8548.90.0100
Pack Quantity
100
Series
M22759/11
Color
White
Material
Plastic PTFE

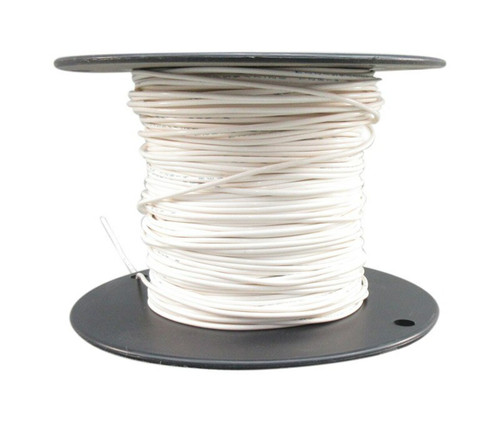

M22759/11-28-9 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.
This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems.
Features
- Insulation: Polytetrafluoroethylene (PTFE)
- Conductor: Silver Plated Copper Conductor
- Voltage Rating: 600 Volts
- Temperature: -55°C to +200°C
- Color: White
- Gauge (AWG): 28
- Stranding: 7/36
- O.D. Min (Inches): .031
- O.D. Max (Inches): .035
- Resistance @ 20°C OHMS/1000’ max: 63.80
- Max Weight - Lbs/1000': 1.22
