INTERNATIONAL SHIPPING
Approvals and Conformities
NSN
5310-00-595-7078
MIL-SPEC#
MS20002C, MIL-H-6875
Product Attributes
Country of Origin
United States
Size
5/16"
Shipping Weight
0.3 pounds
ECCN
EAR99
Manufacturer P/N
MS20002C5
Schedule B Code
7318.22.0000
Pack Quantity
100
Ship Dimensions
5 x 3 x 1 inches
Series
MS20002
Outer Diameter
.593"
Thickness
0.078"
Material
Alloy Steel

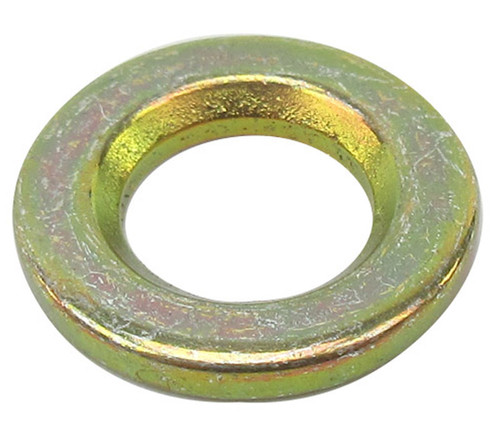

Military Standard MS20002C5 washers are countersunk, high strength, heat-treated washers which must be used with the MS/NAS twelve point and internal wrenching bolts. The chamfer matches the radius under the bolt head. Also good for use with heavy torquing loads where ordinary steel washers would gall.
Part of the following Assemblies:
- Cleveland 30-208 Brake Assembly
- Cleveland 30-208A Brake Assembly
- Cleveland 30-154A Brake Assembly
- Cleveland 30-154B Brake Assembly
- Cleveland 30-162 Brake Assembly
- Cleveland 30-204 Brake Assembly
- Cleveland 30-204A Brake Assembly
- Cleveland 30-150 Brake Assembly
- Cleveland 30-189A Brake Assembly
- Cleveland 30-18902 Brake Assembly
- Cleveland 30-161A Brake Assembly
- Cleveland 30-148 Brake Assembly
- Cleveland d-30665 Wheel Assembly
- Cleveland 40-210 Wheel Assembly
- Cleveland 40-212 Wheel Assembly
- Cleveland 40-169 Wheel Assembly
- Cleveland 40-240A Wheel Assembly
- Cleveland 40-270 Wheel Assembly
- Cleveland 40-181B Wheel Assembly
- Cleveland 40-181C Wheel Assembly
- Thread Size: 5/16
- Outer Dia. (inches): .593
- Thickness (inches): .078
- Countersunk Dia. (inches): .396 min
.406 max
