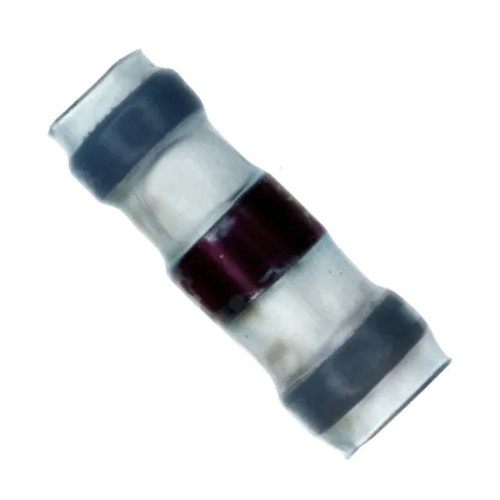

Military Specification M83519/2-7 Splice, Conductor
Military Specification M83519/2-7 Splice, Conductor
Our Part #:SGP114557
Manufacture Part #:M83519-2-7
Regular Price:
Our Price:
Our Price:
Sale Price:
$1.55
Price Per Each
SGP114557
Bulk Shop & Save
250 - 499
$1.50 ea.
500 - 999
$1.48 ea.
1000 +
$1.45 ea.
116
Each
117
configurable
false
M83519-2-7
Blue
2
ea
Each
INTERNATIONAL SHIPPING
SkyGeek welcomes international orders!
Please note: International orders are shipped from their respective locations, which may take an additional 7-10 days to process. We strive to consolidate items into one shipment to minimize duties and taxes. However, if items are located in different locations, separate shipments may be necessary.
For Silver or Tin Plated Shield Termination Applications on Wire with Insulation Material Rated at 125°C and Above.
For continuous operation from –55°C to +150°C. These Termination Sleeves consist of a heat-shrinkable, transparent, polyvinylidene fluoride sleeve with an inner, pre-fluxed solder perform, two thermoplastic sealing insertsand a pre-installed ground lead, providing for quick, easy installation. In addition, these sleeves incorporate a thermal indicator to assist in termination technique. All MIL-Spec termination sleeves have a permanent identification number marked on the part. When heat is applied, the solder melts and flows to provide a superior connection between the ground lead and the shield. At the same time, the two thermoplastic sealing inserts melt and the outer sleeve shrinks to provide an environmentally protected termination.
