Country of Origin
United States
Shipping Weight
0.05 pounds
Schedule B Code
8536.20.0040

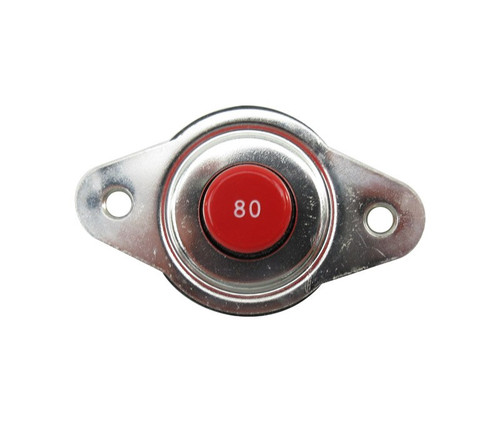

Body Style: Single Pole Type Overall Length: 2.000 Inches Nominal Body Width: 1.250 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.453 Inches Nominal Unthreaded Mounting Hole Diameter: 0.190 Inches Nominal Distance Between Centerlines Of Mounting Facilities Parallel To Body Length: 1.574 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.266 Inches Nominal Pole Quantity: 1 Arc Quenching Method: Air Mounting Facility Type And Quantity: 2 Unthreaded Hole Storage Type: General Purpose Warehouse Maximum Continuous Load Current Rating Per Pole: 80.0 Amperes Ac Single Location And 80.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac Single Location And 30.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 875.0 Ac Single Location And 875.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual Actuator Type And Quantity: 1 Push Button Actuator Function: Reset Actuator Position Designation: At Pole One Internal Trip Release Configuration: Series Trip Single Location Trip Delay Time In Seconds Per Rated Continuous Current: 20.000 Minimum At 200 Pct Single Location And 150.000 Maximum At 200 Pct Single Location Inclosure Protection Type For Which Designed: Shockproof Trip Release Ambient Temp Rating: 77.0 Deg Fahrenheit Nominal Single Location Frequency In Hertz: 400.0 Single Location Unpackaged Unit Weight: 5.000 Ounces Terminal Type And Quantity: 2 Screw
