Country of Origin
United States
Shipping Weight
0.05 pounds
Schedule B Code
8536.50.9050

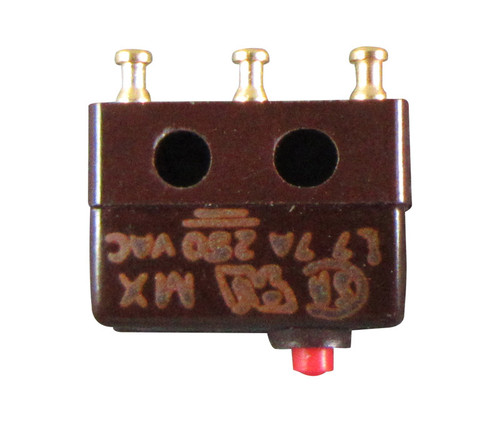

Body Style: Hole Mounted Hazardous Locations/Environmental Protection: Dustproof Center To Center Distance Between Mounting Facilities Parallel To Length: 0.188 Inches Nominal Body Length: 0.500 Inches Nominal Body Width: 0.200 Inches Nominal Body Height: 0.350 Inches Nominal Iii Case Material: Plastic Unthreaded Mounting Hole Diameter: 0.087 Inches Maximum Actuator Style: Round Actuator Diameter: 0.023 Inches Nominal Actuator Height: 0.010 Inches Nominal Actuator Free Position Height: 0.320 Inches Nominal Maximum Voltage Rating In Volts: 230.0 Ac And 28.0 Dc Inclosure Type: Fully Inclosed Mounting Method: Unthreaded Hole Nonpile-Up Contact Arrangement: 1 Pole, Double Throw, Both Positions Maintained Single Switch Unit Switch Release Force: 1.0 Ounces Minimum Switch Actuating Force: 5.0 Ounces Maximum Actuator Movement: 0.020 Pretravel Inches Maximum And 0.004 Overtravel Inches Minimum And 0.005 Differential Inches Maximum Contact Load Current Rating At Maximum Rated Voltage: 7.000 Amperes Resistive Dc And 4.000 Amperes Inductive Dc And 2.500 Amperes Lamp Dc And 4.000 Amperes Motor Dc And 7.000 Amperes Resistive Ac And 7.000 Amperes Inductive Ac Special Features: Included Are 1 Retaining Spring,2 Plates,1 Actuator,2 Mtg Screws Terminal Type And Quantity: 3 Turret
