Country of Origin
United States
Shipping Weight
0.3 pounds
Manufacturer P/N
HL62PB6-3
Schedule B Code
7318.23.0000
Thread Class: 3A
Thread Direction: Right-Hand
Fastener Length: 0.503 Inches Minimum And 0.523 Inches Maximum
Head Height: 0.045 Inches Minimum And 0.055 Inches Maximum
Width Between Flats: 0.0791 Inches Minimum And 0.0806 Inches Maximum
Shank Diameter: 0.2016 Inches Minimum And 0.2026 Inches Maximum

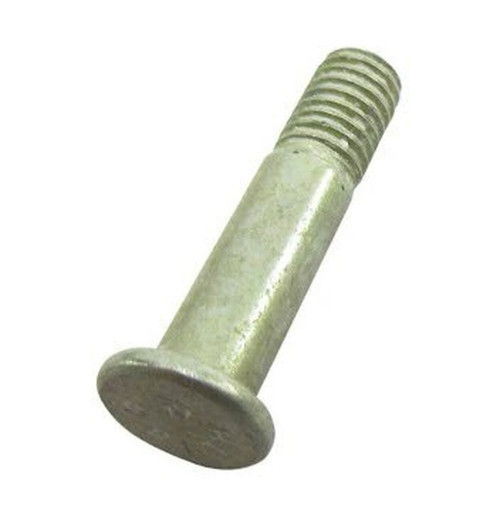

Shank Style: Pin-Rivet, Straight, Threaded
Head Major Diameter: 0.295 Inches Minimum And 0.315 Inches Maximum
Lubrication: Cetyl Alcohol
Grip Length: 0.193 Inches Maximum
Thread Quantity Per Inch: 32
Minimum Tensile Strength: 160000 Pounds Per Square Inch
Nominal Thread Size: 0.190 Inches
Shear Strength: 95000 Single Pounds Per Square Inch
Material: Steel Comp E4340 Or Steel Comp 4340 Or Steel Comp 4140 Or Steel Comp 8740 Overall
Material Document And Classification: Mil-S-5000 Mil Spec 1St Material Response Or Mil-S-5000 Mil Spec 2Nd Material Response Or Mil-S-5626 Mil Spec 3Rd Material Response Or Mil-S-6049 Mil Spec 4Th Material Response Overall
Surface Treatment: Cadmium Overall
Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
Thread Series Designator: UNIF
