Pilatus PN/Spec#
910.42.12.126
Product Attributes
.png)
Country of Origin
Great Britain (UK)
Size
310 mL
Shipping Weight
1.2 pounds
ECCN
EAR99
Color Family
Black
Manufacturer P/N
142495
Schedule B Code
3214.10.0010
Pack Quantity
1
Ship Dimensions
13 x 2 x 2 inches
Size
310 mL Cartridge
Color
Black

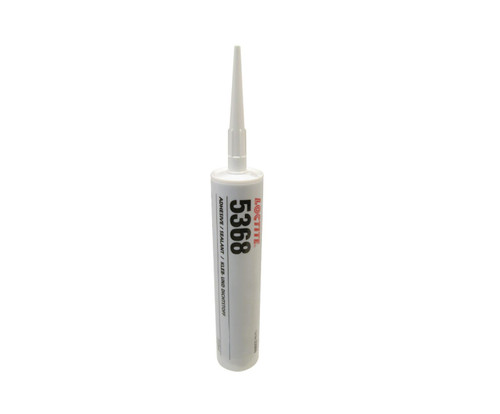

Loctite 5368 acetoxy silicone is a sealant that can also be used for bonding and high temperature protection. It can be used in automotive applications, household electrical appliances, and aeronautics. Typically it is used in temperatures up to 250oC.
Application: This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials.
Technology: SiliconeApplication: This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials.
- Bond surfaces should be free of dirt, grime, and grease. Use on a clean surface for best results.
- Moisture curing will begin immediately after the product is exposed to the atmosphere. Parts to be assembled should be mated within a few minutes after the product is dispensed.
- The bond should be allowed to cure before subjecting to heavy service loads (seven days).
- Wipe away excess material with non-polar solvents.
Chemical Type: Acetoxy silicone
Appearance (uncured): Black paste
Components: One component - requires no mixing
Cure: Room temperature vulcanizing (RTV)
Application: Bonding or Sealing
TYPICAL PROPERTIES OF UNCURED MATERIAL
| Specific Gravity @ 20 °C | 1.04 |
| Extrusion Rate, g/min: Pressure 0.6 MPa, temperature 25 °C: 3 mm Nozzle | 100 |
| Flash Point - See MSDS |
TYPICAL PROPERTIES OF CURED MATERIAL
Cured for 1 week @ 25 °C / 50±5% RH and 0.5 mm gap
Physical Properties:
| Tensile Strength, ASTM D 412 | N/mm² (psi) | 2.2 (320) |
| Tensile Modulus, ASTM D 412 | N/mm² (psi) | 0.6 (90) |
| Elongation, at break, ASTM D 412, % | 435 | |
| Shore Hardness, ISO 868, Durometer A | 26 |
Electrical Properties:
| Dielectric Constant , IEC 60250: 1-MHz | 3 | |
| Dielectric Breakdown Strength, ASTM D 149, kV/mm | 20 | |
| Volume Resistivity, IEC 60093, Ω·cm | 2×1015 |
