Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.5 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
MB4A10H4
Schedule B Code
3917.29.0090
Pack Quantity
500
Color
White

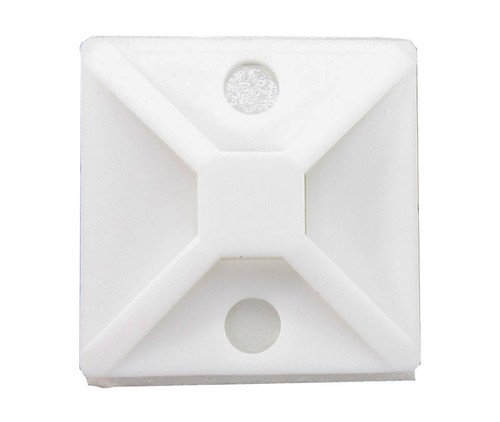

HellermannTyton offers a wide variety of mounting bases suited for many applications. Mounting bases are used in conjunction with cable ties to stabilize and secure wiring bundles, both indoors and outdoors. These mounting bases can be secured to a surface using rubber based adhesive.
- Length: 1.12" / 28.5mm
- Width (imperial): 1.12"
- Width: 28.5mm
- Max. Cable Tie Width: 0.18" / 4.6mm
- Height: 0.22" / 5.6mm
- Mounting Hole ?: 0.18" / 4.6mm
- Mounting Hole Centers: .80" / 20.2mm
- Material: Polyamide 6.6 (PA66)
- Adhesive: Synthetic rubber with base of polyethylene foam
- CSA Certified: No
- Flammability: UL94 V2 (excluding adhesive)
- Material Specification: RoHS
- Operating Temperature: -40 ?F to +185 ?F (-40 ?C to +85 ?C)
