Approvals and Conformities
NSN
8030-00-850-0758
SAE Spec#
AMS-S-8802 Type 2
Product Attributes
Country of Origin
United States
Size
6 oz
Shipping Weight
0.75 pounds
ECCN
EAR99
Color Family
Gray
Manufacturer P/N
CS-3204 Class B-4
Schedule B Code
3506.91.0000
Pack Quantity
1
Ship Dimensions
11 x 2 x 2 inches
Size
6 oz (3.5 fl oz) Cartridge
Spec
AMS-S-8802 Type 2
Class
B-4
Color
Gray

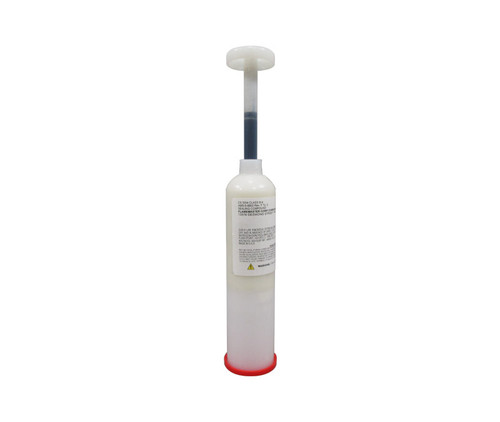

Flamemaster CS 3204 B-4 is a fuel resistant sealant for use on integral fuel tanks and pressurized cabins as well as other areas subject to contact with aircraft fuels, lubricants, oils, water and/or weathering.
Flamemaster CS 3204 B-4 is a two-part polysulfide base compound which cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, magnesium, titanium, steel, and numerous other materials. CS 3204 is designed to withstand the attack of sulfur compounds that are present in jet fuels. CS 3204 Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces.
Features
| Typical Properties | MIS-31868C | CS 3204 WT20 |
| Color: | ||
| Base Compound | Aluminum | |
| Curing Agent | Black | |
| Mixed | Aluminum | |
| Mixing Ratio: | ||
| Weight | 7.8/10:100 | 10/100 |
| Volume | N/A | 8.3/100 |
| Non Volatile | 75% | 80% |
| Viscosity Mixed | 100-180 PS.a | 116 PS.a |
Homogeneity | 11.4% ± 2% | 12.5% |
| Extrudability | Extrudable | Pass |
| Application Life | 5 grams min. | 90 grams |
| Squeeze Out Hardness (Shore A) | N/A | 20 hours |
| 120 Hrs. @24C ± 1C | 35 (min.) | 50 (min.) |
| 28 days @24C ± 1C | 50 (min.) | 60 (min.) |
| Shelf Life @ 28C± 1C | 6 months | 6 months |
| Flash Point | N/A | + 15C |
SURFACE PREPARATION
To obtain good adhesion, remove all traces of oil, wax, grease, dirt, or other contamination. Working in small area segments, wipe the surface using a clean rag doused in an oil free solvent. Before the solvent evaporates, wipe the surface dry with a second clean rag. Maintain a clean solvent supply by pouring the solvent on the washing cloth. CS 3204 will adhere tenaciously to most substrates providing the surface to be sealed is clean and sound.MIXING INSTRUCTIONS
CS 3204 Parts A and B are carefully matched at the time of manufacture to provide optimum performance when cured. Care should be taken to assure that Parts A and B are combined as recommended on the container label. When mixing pre-measured kits do not thin CS 3204 with solvents. Prior to combining with the Part A component, stir the Part B component until the contents of the container are uniform. Place all of the B component into the Part A container and continue stirring until a uniform gray color is achieved. There should be no white or black streaks in the properly blended material. Periodically scrape the sides and bottom of the container as well as the mixing tool to assure proper mixing. When using a mechanical mixer, avoid high speeds since the heat generated will reduce the application time of the mixed CS 3204. Violent stirring will also entrap air in the cured sealant.When mixing materials packaged in bulk or when only a small quantity is required, stir 10 parts by weight of the Part B component into 100 parts by weight of the Part A component. Be sure to stir the Part B prior to weighing out the required amount.
