INTERNATIONAL SHIPPING
Approvals and Conformities
NSN
5935-01-086-5533
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
FSU-22
Schedule B Code
8548.90.0100
Pack Quantity
1

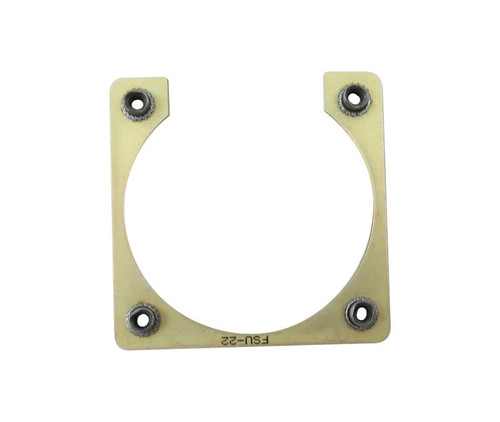

Nut Rings:
- Retainer Material: .040 +/-.003 Thick 2024-T3 Aluminum Alloy.
- Retainer Finish: Alodine per MIL-C-5541.
- Nut, Self-Locking: Steel, cadmium plated followed by a solid dryfilm lubricant. Nuts meet performance requirements of MIL-N-25027 Specification.
- Optional corrosion-resisting steel nuts, cadmium plated plus dryfilm lubricant coating available.
| Shell Size | T THR'D | A | B | C | D | E | |
| UNJC-3B | |||||||
| FSU-3 | 3 | 4.4 | 0.625 | 0.925 | 0.641 | .106/.166 | 0.33 |
| FSU-6 | 6 | 4.4 | 0.469 | 0.755 | 0.366 | .106/.166 | 0.18 |
| FSU-8 | 8 | 4.4 | 0.594 | 0.88 | 0.554 | .106/.166 | 0.43 |
| FSU-10 | 10 | 4.4 | 0.719 | 1.019 | 0.688 | .106/.166 | 0.53 |
| FSU-14 | 14 | 4.4 | 0.906 | 1.192 | 0.953 | .106/.166 | 0.68 |
| FSU-16 | 16 | 4.4 | 0.969 | 1.255 | 1.094 | .106/.166 | 0.78 |
| FSU-18 | 18 | 4.4 | 1.062 | 1.348 | 1.185 | .106/.166 | 0.62 |
| FSU-20 | 20 | 4.4 | 1.156 | 1.5 | 1.305 | .106/.166 | 0.91 |
| FSU-22 | 22 | 4.4 | 1.25 | 1.593 | 1.428 | .106/.166 | 0.91 |
| FSU-23 | 23 | 4.4 | 1.375 | 1.75 | 1.56 | .106/.166 | 1 |
| FSU-24 | 24 | 6.32 | 1.375 | 1.75 | 1.56 | .123/.183 | 1 |
| FSU-25 | 25 | 6.32 | 1.5 | 1.812 | 1.582 | .123/.183 | 1.06 |
| FSU-27 | 27 | 4.4 | 0.969 | 1.255 | 1.094 | .106/.166 | 0.68 |
| FSU-28 | 28 | 6.32 | 1.562 | 2 | 1.82 | .123/.183 | 1.13 |
| FSU-32 | 32 | 6.32 | 1.75 | 2.312 | 2.062 | .123/.183 | 1.19 |
| FSU-36 | 36 | 6.32 | 1.938 | 2.5 | 2.312 | .123/.183 | 1.38 |
