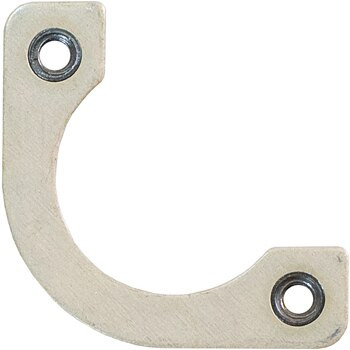

NUT RING/SHELL SIZE 10
SPECIFICATIONS
- RETAINER MATERIAL- .040 +/-.003 THICK 2024-T3 ALUMINIUM ALLOY.
- RETAINER FINISH - ALODINE PER MIL-C-5541.
- NUT, SELF-LOCKING - STEEL, CADMIUM PLATED FOLLOWED BY A SOLID DRYFILM LUBRICANT. NUTS MEET PERFORMANCE REQUIREMENTS OF MIL-N-25027 SPECIFICATION.
PART NO. | SHELL SIZE | T THR'D UNJC-3B | A +/-.003 | B +/- .015 | C +.010/-.000 | D | E +.000/-.010 |
FHA-3 FHA-6 FHA-7 FHA-8 FHA-10 FHA-12 FHA-14 FHA-16 FHA-18 FHA-19 FHA-20 FHA-22 FHA-24 FHA-25 FHA-27 FHA-28 FHA-32 FHA-36 FHA-37 FHA-61
| 3 6 7 8 10 12 14 16 18 19 20 22 24 25 27 28 32 36 37 61
| 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 6.32 6.32 4.40 6.32 6.32 6.32 4.40 4.40 | .625 .469 .719 .594 .719 .812 .906 .969 1.062 .906 1.156 1.250 1.375 1.500 .969 1.562 1.750 1.938 1.187 1.437
| .925 .755 1.019 .880 1.019 1.098 1.192 1.255 1.348 1.192 1.500 1.593 1.750 1.812 1.255 2.000 2.312 2.500 1.500 1.812
