INTERNATIONAL SHIPPING
Approvals and Conformities
Alternate PN#s
CI-238
Product Attributes
Country of Origin
United States
Shipping Weight
1.5 pounds
ECCN
7A994
Manufacturer P/N
CI-268-60
Schedule B Code
9803.20.0000
Pack Quantity
1

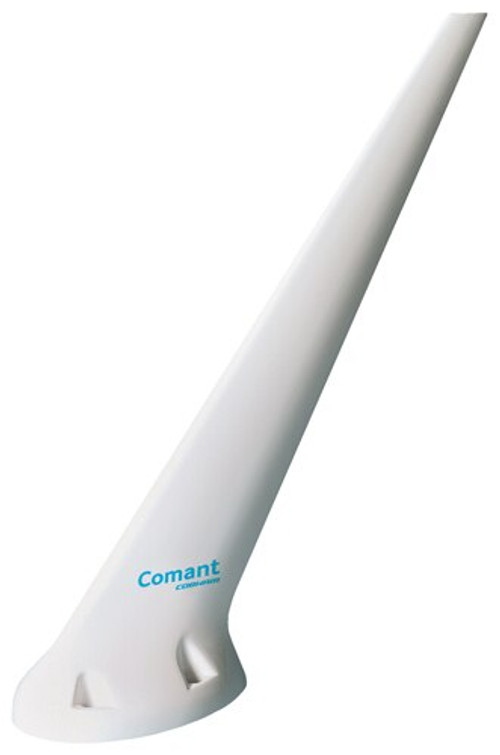

The CI 268-60 uses the same radome as our multi-function ComDat® antennnas. After adding a ComDat® combination antenna, many owners like to match the look for their other VHF antenna. This is the answer. What's more, the CI 268-60 shares the same footprint and offset connector location as our popular CI 238 which is no longer in production.
The CI 268-60 features the same super-tough nickel plated aluminum base plate with integral Nitrile 'O' ring for pressurized applications. The CI 268-60 features a built-in notch filter allowing installation in close proximity to GPS antennas without co-sight interference.
The CI 268-60 features the same super-tough nickel plated aluminum base plate with integral Nitrile 'O' ring for pressurized applications. The CI 268-60 features a built-in notch filter allowing installation in close proximity to GPS antennas without co-sight interference.
| Electrical | |
| Frequency | 118-137 |
| VSWR | 2.9:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance RF | 50 Ohms |
| Power RF | 50 Watts |
| Harmonic Rejection | 80 dB Typical |
| Mechanical | |
| Weight | 1.25 lbs Max. |
| Height | 14.1 inches Max. |
| Material | Molded Glass Filled Nylon |
| Finish | White Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55 to +85 Celcius |
| Altitude | 35,000 ft. |
| Airspeed | 325 KIAS Maximum @ Sea Level |
| Federal Specifications | |
| FAA TSO | C37d, C38d |
| RTCA Environmental | DO-160D |
