Frequency : 75 MHz

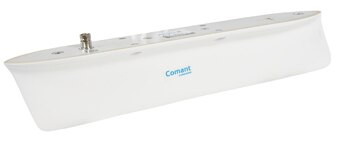

This Comant marker beacon is identical to the CI 118 except with a 4-hole through mount configuration.
Designed specifically for high-performance aircraft applications. Features aerodynamic design in a lightweight package. Antenna is a low profile blade-type encased in a molded polyurethane shell.
This model has been tested to the tough DO-160D environmental standards. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.
MODEL - CI 118-10 Marker Beacon This Comant marker beacon is identical to the CI 118 except with a 4-hole through mount configuration.
Designed specifically for high-performance aircraft applications. Features aerodynamic design in a lightweight package. Antenna is a low profile blade-type encased in a molded polyurethane shell.
This model has been tested to the tough DO-160D environmental standards. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.
Electrical
Frequency 75 MHz
VSWR 1.7:1 Maximum
Polarization Parallel to the mounting
Radiation Pattern Primarily downward
Impedance RF 50 Ohms
Resistance DC DC Grounded
Power RF Receive only
Mechanical
Weight 0.8 lbs
Height 2.90 inches
Construction Molded Radome
Finish White Polyurethane Paint
Connector BNC (female)
Environmental
Temperature -55 to 85 C
Altitude 45,000 ft.
Airspeed 400 KTAS @ 25,000 ft
Federal Specifications
FAA TSO C35d, Class A
RTCA Environmental DO-138
