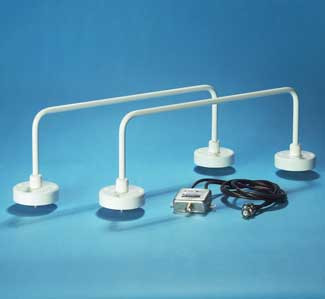

VOR/Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/drag, tubular structure to minimize helicopter rotor "down wash" forces, wide band/high efficiency electrical performance and DC grounding for lightning protection. Set includes a pair (2) of "towel bar" sensor elements each with single BNC output connector and a one-piece dual coax interconnect signal combiner harness with single BNC connector output. Provides for a single cable routing to the avionics location.
|
MODEL CI 205-3 Towel Bar Set |
|
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 5.0:1 108 - 118 MHz (VOR / LOC) 5.0:1 329 - 335 MHz (Glide Slope) |
| Polarization | Horizontal |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms Nominal |
| Power | Receive Only |
| Mechanical | |
| Weight | 1.75 lb. Maximum |
| Height | 5.25 lb. Maximum |
| Material | Delrin mounts / Aluminum "Towel Bar" |
| Finish | Polyurethane Enamel |
| Connector | BNC |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 300 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160C |
| Environmental Category | F2-XC[CVY4UW]XXXXXXXXXXXXXX[1B]X |
| FAA TSO | C34c, C36c, C40c |
| RTCA MOPS | DO-196 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard (with 4' cables) |
| Color | |
| White | Standard |
