Country of Origin
United States
Shipping Weight
0.01 pounds
Manufacturer P/N

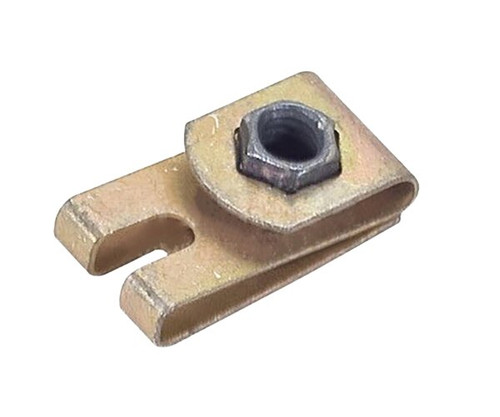

BACN10JR3CFD
Schedule B Code
7318.16.0000
Thread Class : 3B Thread Direction : Right-Hand Locking Feature : Prevailing Torque All Metal Design Counterbore Diameter : 0.194 Inches Minimum Nut Lubrication : Dry Film Lubricant Mounting Hole Diameter : 0.098 Inches Nominal Nut Style : Plate (Floating) Nut Length : 0.948 Inches Maximum Nut Height : 0.250 Inches Maximum Plate Thickness : 0.032 Inches Maximum Plate Width : 0.416 Inches Maximum Nut Counterbore Depth : 0.060 Inches Minimum Nut Nut Mounting Provision : Straight Holes Mounting Hole Arrangement Style : 2 Holes Distance From Aperture Center To Mounting Hole Center : 0.339 Inches Minimum And 0.349 Inches Maximum Center To Center Distance Between Mounting Holes Along Length : 0.686 Inches Minimum And 0.690 Inches Maximum Temp Rating : 450.0 Deg Fahrenheit Maximum Thread Series : Unjf Features Provided : Floating Nut Thread Quantity Per Inch : 32 Nominal Thread Size : 0.190 Inches Material : Iron Alloy 660 Overall Material Document And Classification : Ams5525 Assn Std Single Material Response Overall Surface Treatment : Cadmium Or Cadmium And Chromate Or Cadmium And Phosphate Overall Surface Treatment Document And Classification : Qq-P-416 Ty 1,Cl 2 Fed Spec 1St Treatment Response Or Qq-P-416 Ty 2,Cl 2 Fed Spec 2Nd Treatment Response Or Qq-P-416 Ty 3,Cl 2 Fed Spec 3Rd Treatment Response Overall Specification/Standard Data : 81205-BACN10JR Manufacturers Standard
