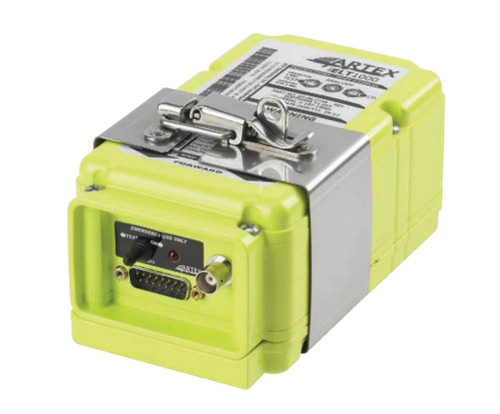

ACR Artex™ 8207 Model ELT 1000 406 MHz Emergency Locator Transmitter - Rod Antenna & ACE Switch

Features

• A quick, efficient retrofit for 121.5 MHz transmitters with two-wire compatibility
• Automatic fixed emergency locator transmitter
• Equipped with a single antenna output for emergency transmission on both 406 MHz (Cospas-Sarsat) and 121.5 MHz frequencies
• Provides enhanced positional accuracy using a built-in GPS interface that does not require aircraft power
• Encoded digital message broadcasts aircraft identification/registration and owner/emergency contact details

• Weight: 2.2 lb
• Dimensions: 6.6 x 2.9 x 3.7 in
• Operating frequencies: 406 MHz, 121.5 MHz +/- 5 KHz, GPS interface
• GPS: built in GPS navigational interface
• Output power: 406 MHz: 5 W (440 ms/50 sec) for 24 hours @-20°C to +55°C, 121.5 MHz: 100 mW minimum for 50 hours @ -20°C to +55°C
• Output connector: BNC female (406 MHz; 121.5 MHz)
• Activation: automatic by 4.5 feet per second (2.3 G) primary G-switch or manual activation
• Battery: 6 year Lithium (LiSO2)
• Temperature certified to: operating: -20°C to +55°C, storage: -55°C to +85°C
• Self test: G-switch enabled, 406 MHz power, antenna/coax connection, low battery
• Remote control: on/arm/test
• Approvals: Cospas-Sarsat, FAA TSO

Downloads

 Safety Data Sheet
