Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
AN919-16J
Schedule B Code
7609.00.0000

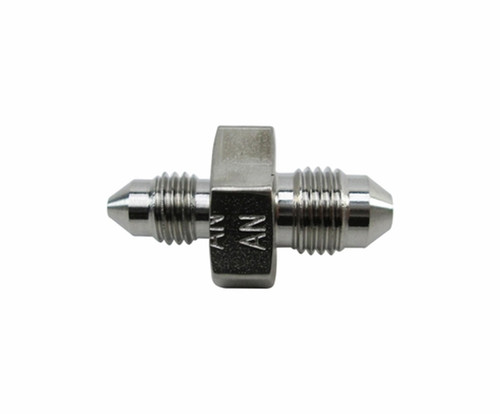

Thread Class: 3A All Ends Reducer Type: Concentric Maximum Operating Temp: 275.0 Deg Fahrenheit Single Response End Item Identification: 43N Aircraft, Hornet F/A-18 Connection Style: Flared W/ Gasket Seal (Boss) All Ends Connection Type: Threaded External Boss All Ends Thread Quantity Per Inch: 12 1St End Maximum Operating Pressure: 3000.0 Pounds Per Square Inch Single Response Nominal Thread Size: 0.438 Inches 2Nd End Nominal Thread Size: 1.062 Inches 1St End Nominal Overall Length: 1.797 Inches Material: Steel Comp 304 Overall Material Document And Classification: 66 Fed Std Single Material Response Overall Surface Treatment: Passivate Overall Surface Treatment Document And Classification: Mil-S-5002 Mil Spec Single Treatment Response Inside Surface Treatment Document And Classification: Mil-F-14072,E300,Ty 2 Mil Spec Single Treatment Response Outside Thread Series Designator: Unf 2Nd End Thread Series Designator: Unj 1St End Specification/Standard Data: 88044-An919 Government Standard
