Approvals and Conformities
NSN
4730-01-011-6192
MIL-SPEC#
MIL-F-5509
Product Attributes
Country of Origin
United States
Shipping Weight
0.09 pounds
ECCN
EAR99
Color Family
Gray
Manufacturer P/N
AN832-4J
Schedule B Code
7609.00.0000
Pack Quantity
1
Ship Dimensions
1 x 1 x 1 inches
Series
AN832
Tube Outer Diameter
1/4"
Thread Size
7/16"-20
Color
Gray
Material
Stainless Steel

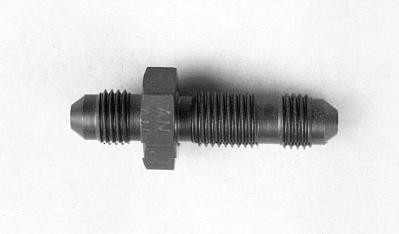

Air Force-Navy's AN832-4J is as the name describes: a union with a straight, flared tube that is made of corrosion resistant steel (CRES). More information can be found below.
∗Unless otherwise noted, values are in inches
∗NOTE: Superseded by SAE-AS5406
- Connection Style (1st end): Flared (tube)
- Connection Style (2nd end): Flared with gasket seal (boss)
- Connection Type (1st end): Threaded external tube
- Connection Type (2nd end): Threaded external boss
- Nominal Thread Size (all ends): .438 bulkhead
- Nominal Outside Diameter Tube Accommodated (1st end): .250
- Nominal Overall Length: 2.047
- Material: Steel (Composition 304)
- Seat Angle (1st end): 37 degrees
- Surface Treatment: Passivate
- Specification/Standard Data: Specification/Standard Data 88044-AN832 government standard and 81343-AS4841 professional/industrial association standard
- Thread Class (all ends): 3A
- Thread Series Designator (all ends): UNJF
