Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N

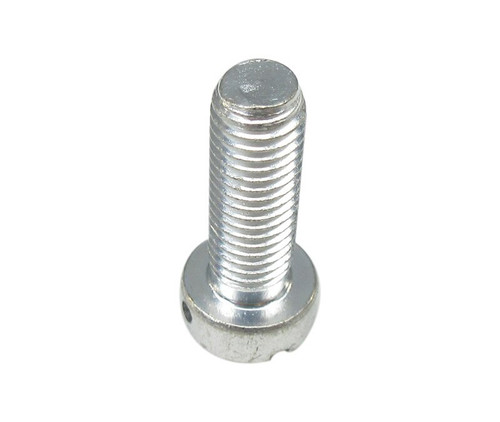

AN502-416-12
Schedule B Code
7318.15.2000
Thread Class: 3A
Thread Direction: Right-Hand
Thread Length: 0.570 Inches Minimum And 0.704 Inches Maximum
Fastener Length: 0.750 Inches Nominal
Head Style: Fillister
Head Diameter: 0.389 Inches Minimum And 0.414 Inches Maximum
Head Height: 0.161 Inches Minimum And 0.170 Inches Maximum
Hole Diameter: 0.062 Inches Nominal
Internal Drive Style: Cross Recess Type 1
Nominal Thread Diameter: 0.250 Inches
Hole Quantity: 1
Thread Quantity Per Inch: 28
Minimum Tensile Strength: 125000 Pounds Per Square Inch
Hardness Rating: 26.0 Rockwell C Minimum And 32.0 Rockwell C Maximum
Screw Material: Steel Comp 8630
Screw Material Document And Classification: Mil-S-6050 Mil Spec Single Material Response Or An-S-9 Mil Std Single Material Response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 3 Fed Spec Single Treatment Response
Head Hole Configuration Style: Round
Thread Series Designator: Unf
