Country of Origin
United States
Shipping Weight
0.35 pounds
Manufacturer P/N
208860-EA
Schedule B Code
3403.19.5000
Ship Dimensions
8 x 2 x 2 inches
Spec
MIL-G-6032D AM I Type I

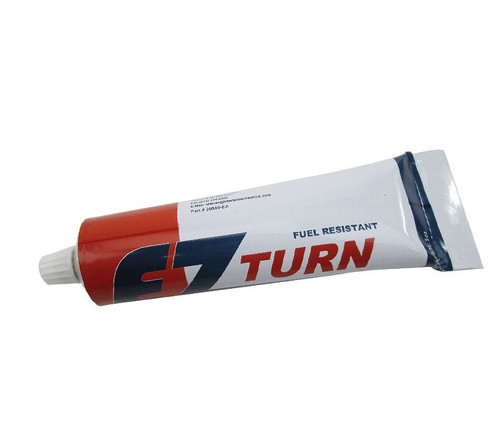

E Z TURN 208860-EA Yellow-Brown AMS-G-6032A, Type 1 Spec Fuel Resistant Lubricant - 5 oz Tube
E-Z Turn Specification Sheet:
SAE-AMS-G-6032
MIL-G-6032D Am I Type I | Description | Results | Test Method | | Dropping Point 9126.7°C min.) | >600°F | ASTM D-2265 | | Unworked Penetration | 260 | ASTM D-1403 | | Worked Penetration | 220 | ASTM D-1403 | | NLGI Number | 3 | NLGI | | Consistency | Soft | Visual | | Color | Cream | Visual | | Resistance to Aqueous Solutions - Distilled Water | Pass; no deterioration | FTM-5415 | | Resistance to Aqueous Solutions - Ethanol:Water 50:50 mix | Pass; no deterioration | FTM-5415 | | Resistance to Fuel/Appearance | Pass | FTM-5414 | | Fuel Solubility (20% max.) | 1.11% | FTM-5414 | | Water Spray Off | 2.33% | ASTM D-4049 | | Water Washout at 175°F (Bearing Dried at 77°C) | 6.63% | ASTM D-1264 | | Load Wear Index | 74.09 | ASTM D-2596 | | Load Wear Index (Last Non-Seizure [Scar]) | 160kg (0.48 mm) | ASTM D-2596 | | Load Wear Index (Last Seizure [scar]) | 200 kg (0.71 mm) | ASTM D-2596 | | Load Wear Index (Weld Load) | 250 kg | ASTM D-2596 | | Copper Corrosion (#1b max.) | Shiny 1b | FTM-5309 | | Film Stability and Corrosion on Steel | Pass; no corrosion | ¶4.6.3 | | Roll Stability - Original Penetration | 271 | ASTM D-1831 | | Roll Stability - After Rolling Penetration | 275 | ASTM D-1831 | | Roll Stability - Change in Penetration | +4 | ASTM D-1831 | | Roll Stability - Percent Change | +1.48% | ASTM D-1831 | | EMCOR Rust Test, Bearing A | #4 | ASTM D-6138 | | EMCOR Rust Test, Bearing B | #5 | ASTM D-6138 | | Dielectric Strength | 112 volts/mil | ASTM D-149 | | Breakdown Voltage | 5,597 volts | ASTM D-149 | | Dissipation Factor @ 1 kHz/73°F/50%R.H. | 0.0782 | ASTM D-150 | | Dielectric Constant | 5.95 | ASTM D-150 | | Low Temperature Torque at 0° F - Starting Torque | 55,250 g-cm | ASTM D-1478 | | Low Temperature Torque at 0° F - 1 Hour Running Torque | 2,990 g-cm | ASTM D-1478 | |
