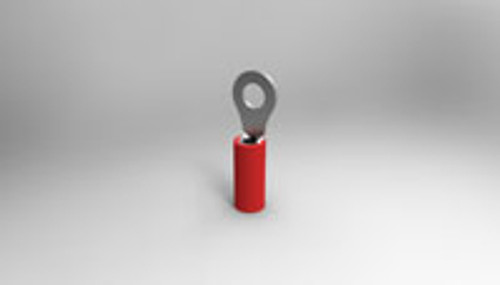

TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack

TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack
TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack
Our Part #: SGP35161-X50
Manufacture Part #: 36149
Our Price: $17.00 ($0.34 ea)
Price Per Pack - (Pack = 50 ea)

Bulk Shop & Save

  • 2 - 4 $16.50 ($0.33 ea)
  • 5 - 9 $16.00 ($0.32 ea)
  • 10 - 19 $15.50 ($0.31 ea)
  • 20 + $15.00 ($0.30 ea)

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5940-00-813-0698
MIL-SPEC#
MS25036-101

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
36149
Schedule B Code
8536.90.4000
Pack Quantity
50
The Tyco AMP 36149 Terminal is a closed barrel, ring tongue terminal for wires AWG 22-16. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and red nylon insulation. Set comes with 5,000 pieces.

Features

Product Type Features:
  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 2.03-3.18 [.080-.125]
  • Stud Diameter (mm [in]): 3.68 [0.145]
  • Stud Size: 6 [M3.5]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Red

    • Electrical Characteristics:
  • Voltage (VAC): 300

    • Termination Features:
  • Wire/Cable Size (CMA): 509 – 3,260

    • Body Features:
  • Wire Range (mm [AWG]): 0.30-1.40² [22-16]
  • Length (mm [in]): 17.07 [0.672]
  • Tongue Material Thickness (mm [in]): 0.79 [0.031]
  • Insulation Sleeve Material: Nylon

    • Contact Features:
  • Class: 1 & 2

    • Industry Standards:
  • Government/Industry Qualification: Yes
  • Government/Industry Part Number: MS25036-101
  • RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Always was RoHS compliant

    • Packaging Features:
  • Packaging Method: Loose Piece
  • Packaging Quantity: 5,000

    • Other:
  • Brand: AMP
