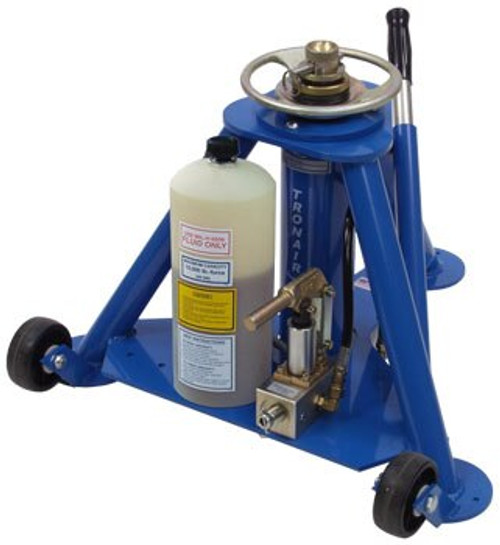

Tronair® 02-0517C0140 Blue Hydraulic Aft Tripod Jack (5 ton/4.5 metric ton) (CE)

Our Part #: SGP1984
Manufacture Part #: 02-0517C0140
Our Price: $5,198.65 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

Alternate PN#s
02-0517-0140

Product Attributes

Country of Origin
United States
Shipping Weight
108 pounds
ECCN
EAR99
Color Family
Blue
Manufacturer P/N
02-0517C0140
Schedule B Code
8425.42.0000
Pack Quantity
1
Ship Dimensions
20 x 20 x 20 inches
Color
Blue
If you need to regularly lift your aircraft to perform essential maintenance work, you can rely on the quality of Tronair industrial-grade equipment. The Tronair 02-0517C0140 hydraulic 5-ton jack tripod is built for aviation use. It's a multi-stage system that can hold up to 5 tons, and includes a hand pump with built-in pressure relief valve.

Other features include:
  • Quick rising center extension
  • Filler/breather cap for easy access
  • .75-inch (2 cm) spherical radius cup jack pad
  • Threaded rams with hand wheel style safety nut
  • Heavy duty wheels
  • Blue powder coat finish
Specifications:
  • 17 inches high (closed); 46 inches (fully extended)
  • Weight: 105 pounds
  • Capacity: 5 tons
  • CE approved
  • Uses standard MIL-PRF-5606 hydraulic fluid
  • Additional Standard Features - listed below by Model Number
  • ? Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)
  • Air Pump (field installed) - call factory
  • Air Pump (factory installed) - insert an "A" as the third digit of the model number, (e.g. 02A0522-0140)
  • Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number, (e.g. 02B0517-0140)
  • Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C1036-0111) Not standard on 5 ton jacks
  • K-1317 (field installed) - adds spring loaded casters to all 5 ton single stage jacks; except Model 02-7856-0100 use K-2812; one kit required per jack
  • K-1318 (field installed) - adds spring loaded casters to Model 02-1032-0111; one kit required per jack
  • K-1319 (field installed) - adds spring loaded casters to Model 02-1036-0111
  • K-2812 (field installed) - adds spring loaded casters for models 02-0517-0140, 02-0522-0140 & 02-7828-0110. (1 each per jack)
  • K-1106 (field installed) - air pump manifold kit, supplies shop air from a single source to three tripod jacks via three 25 ft. (7.6 m) hoses to run air pump.
  • K-4220 (field installed) - air pump manifold kit, supplies shop air from a single source to four tripod jacks via four 25 ft. (7.6 m) hoses to run air pump.
  • H-2395 (field installed) - jack cover (universal)
Aircraft Applications:
  • Bell 206B3
  • Bell 206L4
  • Bell 206LT
  • Bell 214
  • Bell 214ST
  • Bell 222
  • Bell 230
  • Bell 427
  • Bell 430
  • Bell CH-139
  • Bell OH-58
  • Bell TH-67
  • CASA 212-100
  • CASA 212-200
  • CASA CN-235/HC-144A
  • Cessna Citation CJ4
  • Cessna Mustang 510
  • Eclipse 500
  • Eurocopter AS330 Puma
  • Eurocopter AS332 Super Puma
  • Eurocopter AS332 Dauphin
  • Eurocopter AS332 Cougar
  • Eurocopter EC225 Super Puma MKII+
  • Eurocopter EC725 Super Cougar
  • Fokker 50
  • Piaggio P-180 Avanti
  • Sikorsky CH-148
  • Sikorsky H-92 Superhawk
  • Sikorsky S-92

Downloads

download icon Safety Data Sheet
