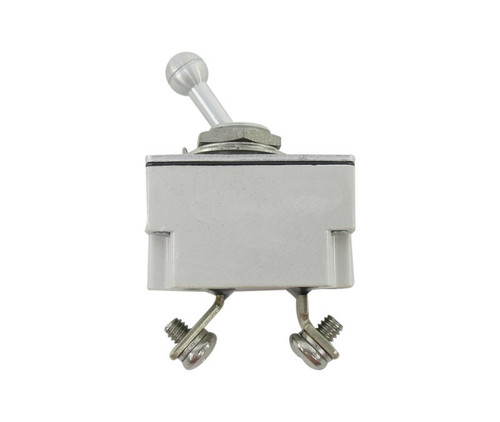

The KLIXON® 7270-1-7-1/2 Circuit Breaker Toggle Switch from SkyGeek is designed to deliver superior protection when you need it the most. The device successfully combines a standard circuit breaker with a toggle switch for an all-in-one solution for your circuit protection needs. The KLIXON® 7270-1-7-1/2 Circuit Breaker Toggle Switch is compact and easy to use, with a built-in toggle switch on top that allows you to manually trip the breaker as needed, interrupting the power flow. Like all KLIXON® circuit breakers, the 7270-1-7-1/2 circuit breaker offers fault-free operation for improved safety.
Body Style: Single Pole Type
Bushing Length: 0.250 Inches Nominal
Body Length: 1.375 Inches Maximum
Body Width: 0.750 Inches Maximum
Case Material: Metal
Center To Center Distance Between Terminals Parallel To Length: 0.906 Inches Nominal
End Item Identification: Helicopter Chin00K Ch-47
Mounting Surface To Terminal End Distance: 1.312 Inches Nominal
Pole Quantity: 1
Mounting Facility Type And Quantity: 1 Threaded Bushing
Thread Quantity Per Inch: 32
Maximum Continuous Load Current Rating Per Pole: 7.0 Amperes Ac Single Location And 7.0 Amperes Dc Single Location
Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 3500.0 Ac Single Location And 6000.0 Dc Single Location
Circuit Protection Type: Overcurrent Single Location
Trip Release Method: Thermal Single Location
Trip Release Characteristic: Time Delay Single Location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 Single Location
Reset Method: Manual
Main Contact Tripping Mechanism Type: Trip Free
Manual Actuator Type And Quantity: 1 Toggle
Actuator Function: Trip-Reset
Actuator Position Designation: At Pole One
Internal Trip Release Configuration: Series Trip Single Location
Nominal Thread Size: 0.469 Inches
Trip Delay Time In Seconds Per Rated Continuous Current: 20.000 Minimum At 200 Pct Single Location And 70.000 Maximum At 200 Pct Single Location
Inclosure Protection Type For Which Designed: Explosion Resistant And Moisture Resistant
Test Data Document: 81349-Mil-C-5809 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
