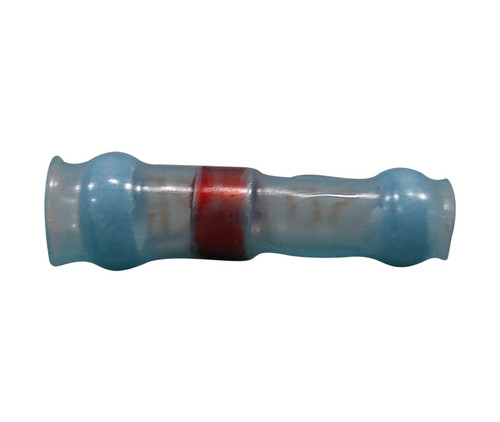

TE Connectivity S01-05-R Transparent Blue Splice, Conductor - 100/Pack

For continuous operation from –55°C to +150°C. These Termination Sleeves consist of a heat-shrinkable, transparent, polyvinylidene fluoride sleeve with an inner, pre-fluxed solder perform, two thermoplastic sealing insertsand a pre-installed ground lead, providing for quick, easy installation. In addition, these sleeves incorporate a thermal indicator to assist in termination technique. All MIL-Spec termination sleeves have a permanent identification number marked on the part. When heat is applied, the solder melts and flows to provide a superior connection between the ground lead and the shield. At the same time, the two thermoplastic sealing inserts melt and the outer sleeve shrinks to provide an environmentally protected termination.

Sold in Increments of 100.
