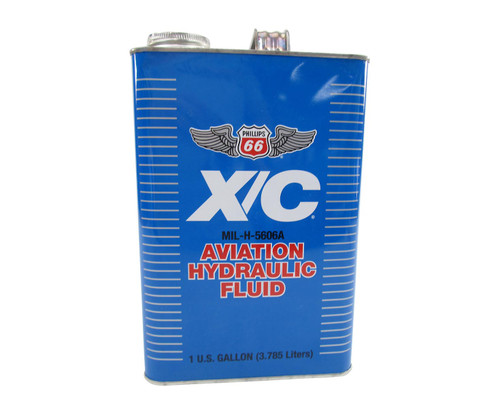

Phillips 66 X/C 5606A Aviation Hydraulic Fluid is a mineral oil-based, high-viscosity index, anti-wear hydraulic fluid, designed to meet the severe demands of aerospace and industrial applications. It has excellent shear stability and anti-wear properties to protect hydraulic pumps and motors. Metal deactivators and foam inhibitors provide enhanced performance in general purpose hydraulic applications.
X/C 5606A Aviation Hydraulic Fluid is recommended for use in hydraulic systems that do not require a "super clean" fluid. The fluid is dyed red for identification and leak detection purposes.
This hydraulic fluid has the following features:
Very high-viscosity index for use over a wide temperature rangeOutstanding low-temperature propertiesExcellent wear protectionResists deposit formation and viscosity increase due to oxidationProtects against rust and corrosionGood foam resistance
NOTE: MIL-H-5606A is superseded by MIL-PRF-5606H
For more information, we suggest examining the product's technical data sheet (TDS).
Country of Origin
Schedule B Code
7 x 5 x 11 inches
Gallon (3.785 Liter) Jug
X/C® Aviation Hydraulic Fluids are recommended for use in nonpressurized systems operating between -54°C and 90°C (-65°F to 194°F), and in pressurized systems operating between -54°C and 135°C (-65°F to 275°F) at pressures up to 3,000 psi. NOTE:
Do not use in hydraulic systems with natural rubber elastomers.
Typical applications include:Aircraft and missile control systems, autopilots and shock absorbersAuto wreckers, boom trucks and electrical service equipment (cherry pickers) where all-weather performance is requiredIndustrial robotics
X/C® 5606A Aviation Hydraulic Fluid meets the requirements of:U.S. Military Specification MIL-H-5606A (obsolete)
