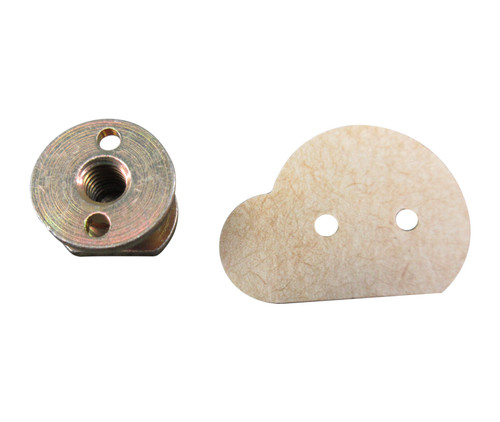

National Aerospace Standard NAS1832-3-3 Steel Insert, Panel Fastener

Our Part #: SGP141390
Manufacture Part #: NAS1832-3-3
Our Price: $2.14 (Each)
Sale Price: $0.70
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Flange Diameter: 0.550 Inches Minimum And 0.560 Inches Maximum
  • Overall Length: 0.375 Inches Nominal
  • Hole Type: Threaded
  • Features Provided: Potting Hole Or Potting Slot
  • Flange Thickness: 0.060 Inches Nominal
  • Insert Style: Protruding Flange
  • Iii Material: Steel Comp 1006 Or Steel Comp 1008 Or Steel Comp 1010 Or Steel Comp 1012 Or Steel Comp 1015 Or Steel Comp 1016 Or Steel Comp 1017 Or Steel Comp 1018 Or Steel Comp 1019 Or Steel Comp 1020 Or Steel Comp 1021 Or Steel Comp 1022 Or Steel Comp 1025Or Steel Comp 1030 Or Steel Comp 1035 Or Steel Comp 1040 Overall
  • Material Document And Classification: 66 Fed Std All Material Responses Overall
  • Surface Treatment: Cadmium Overall And Chromate Overall
  • Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
  • Thread Size And Series/Type Designator: 0.190-32 Unjf
  • Specification/Standard Data: 80205-NAS1832 Professional/Industrial Association Standard
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    9A991.d
    Manufacturer P/N
    NAS1832-3-3
    Schedule B Code
    9607.19.0000
    Pack Quantity
    1
    Ship Dimensions
    1 x 1 x 0 inches
    NSN
    5325-01-118-8995
    Series
    NAS1832
    Thread
    1900-32
    Length
    .375
    Material
    Carbon Steel

    Other Part Numbers
