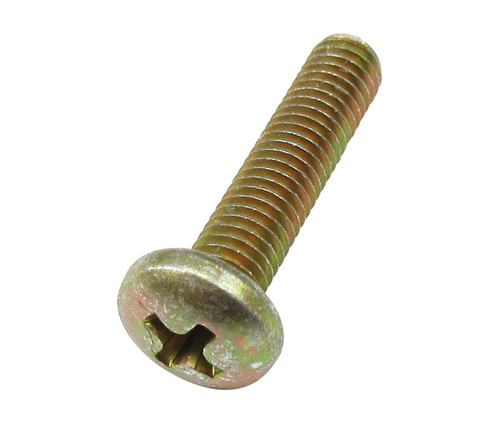

Machine Screw, Pan Head, Cross Recessed, Carbon Steel, Cadmium Plated, (MS35206 & MS35207)

Sold in quantities of 100.

These pan head machine screws feature 60,000 psi minimum tensile strength and are cadmium plated to specification QQ-P- 416, Type 2, Class 3. Manufactured from carbon steel to Federal Standard #66, these screws can be used as replacements for AN526 machine screws.

Part Number	MS Number	Length	Thread Size
35206213	MS35206-213	1/4	4-40
35206214	MS35206-214	5/16	4-40
35206215	MS35206-215	3/8	4-40
35206216	MS35206-216	7/16	4-40
35206217	MS35206-217	1/2	4-40
35206218	MS35206-218	5/8	4-40
35206219	MS35206-219	3/4	4-40
35206220	MS35206-220	7/8	4-40
35206221	MS35206-221	1	4-40
35206222	MS35206-222	1-1/4	4-40
35206223	MS35206-223	1-1/2	4-40
35206226	MS35206-226	1/4	6-32
35206227	MS35206-227	5/16	6-32
35206228	MS35206-228	3/8	6-32
35206229	MS35206-229	7/16	6-32
35206230	MS35206-230	1/2	6-32
35206231	MS35206-231	5/8	6-32
35206232	MS35206-232	3/4	6-32
35206233	MS35206-233	7/8	6-32
35206234	MS35206-234	1	6-32
35206235	MS35206-235	1-1/4	6-32
35206236	MS35206-236	1-1/2	6-32
35206237	MS35206-237	1-3/4	6-32
35206238	MS35206-238	2	6-32
35206241	MS35206-241	1/4	8-32
35206243	MS35206-243	3/8	8-32
35206244	MS35206-244	7/16	8-32
35206245	MS35206-245	1/2	8-32
35206246	MS35206-246	5/8	8-32
35206247	MS35206-247	3/4	8-32
35206248	MS35206-248	7/8	8-32
35206249	MS35206-249	1	8-32
35206250	MS35206-250	1-1/4	8-32
35206251	MS35206-251	1-1/2	8-32
35206252	MS35206-252	1-3/4	8-32
35206253	MS35206-253	2	8-32
35206261	MS35206-261	3/8	10-24
35206263	MS35206-263	1/2	10-24
35206279	MS35206-279	1/2	1/4-20
35207260	MS35207-260	5/16	10-32
35207261	MS35207-261	3/8	10-32
35207263	MS35207-263	1/2	10-32
35207264	MS35207-264	5/8	10-32
35207265	MS35207-265	3/4	10-32
35207266	MS35207-266	7/8	10-32
35207267	MS35207-267	1	10-32
35207268	MS35207-268	1-1/4	10-32
35207269	MS35207-269	1-1/2	10-32
35207270	MS35207-270	1-3/4	10-32
35207271	MS35207-271	2	10-32
35206242	MS35206-242	5/16	8-32

Thread Class: 2A

Thread Direction: Right-Hand

Thread Length: 0.813 Inches Minimum And 0.875 Inches Maximum

Fastener Length: 0.875 Inches Nominal

Head Style: Pan

Head Diameter: 0.357 Inches Minimum And 0.373 Inches Maximum

Head Height: 0.122 Inches Minimum And 0.133 Inches Maximum

Internal Drive Style: Cross Recess Type 1

Nominal Thread Diameter: 0.190 Inches

Thread Quantity Per Inch: 32

Minimum Tensile Strength: 55000 Pounds Per Square Inch

Screw Material: Steel Comp 1010 Or Steel Comp 1011 Or Steel Comp 1013

Screw Material Document And Classification: Astm A575 Assn Std Single Material Response Or Astm A576 Assn Std Single Material Response Or Astm A108 Assn Std Single Material Response

Screw Surface Treatment: Cadmium And Chromate

Screw Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response

Thread Series Designator: Unf

Product Attributes

Country of Origin

United States

Shipping Weight

0.001 pounds

ECCN

EAR99

Color Family

Gold

Manufacturer P/N

MS35207-266

Schedule B Code

7318.15.2000

Pack Quantity

Ship Dimensions

3 x 4 x 2 inches

Series

MS35207

Thread Size

10-32"

AN520 PN#

AN520-10R14

Color

Gold

Material

Steel

Approvals and Conformities

NSN

5305-00-995-3444

MIL-SPEC#

FF-S-92

Alternate PN#s

AN520-10R14, MS35236-66, 411-535, 124-3003-228, 935.63.12.068
