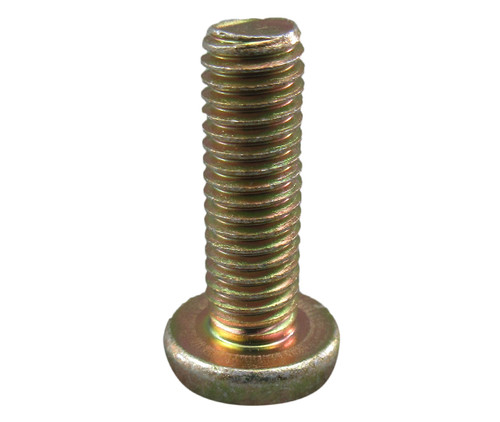

Military Standard MS35207-264 Steel Screw, Machine

Military Standard MS35207-264 Steel Screw, Machine
Our Part #: SGP137905
Manufacture Part #: MS35207-264
Our Price: $0.21
Price Per Each

Bulk Shop & Save

  • 100 - 999 $0.20 ea.
  • 1000 + $0.19 ea.
In-Stock: 6 Units available.
Need More? 177,355 Units on order and expected in ± 11-14 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Thread Class: 2A
  • Thread Direction: Right-Hand
  • Thread Length: 0.563 Inches Minimum And 0.625 Inches Maximum
  • Fastener Length: 0.625 Inches Nominal
  • Head Style: Pan
  • Head Diameter: 0.357 Inches Minimum And 0.373 Inches Maximum
  • Head Height: 0.122 Inches Minimum And 0.133 Inches Maximum
  • Internal Drive Style: Cross Recess Type 1
  • Nominal Thread Diameter: 0.190 Inches
  • Thread Quantity Per Inch: 32
  • Minimum Tensile Strength: 55000 Pounds Per Square Inch
  • Criticality Code Justification: Feat
  • Screw Material: Steel
  • Screw Material Document And Classification: Qq-S-637 Fed Spec Single Material Response Or 66 Fed Std Single Material Response
  • Screw Surface Treatment: Cadmium And Chromate
  • Screw Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
  • Special Features: Material Steel
  • Thread Series Designator: Unf
  • Country of Origin
    United States
    Shipping Weight
    0.007 pounds
    ECCN
    EAR99
    Color Family
    Gold
    Manufacturer P/N
    MS35207-264
    Schedule B Code
    7318.15.2000
    Pack Quantity
    1
    Ship Dimensions
    1 x 0 x 0 inches
    Series
    MS35207
    Thread Size
    10-32"
    AN520 PN#
    AN520-10R10
    Color
    Gold
    Material
    Steel
    NSN
    5305-00-989-7435
    MIL-SPEC#
    FF-S-92
    Alternate PN#s
    AN520-10R10, AN526-1032-10, AN515-416-10, MS35209-56, MS35224-64, 124-3003-107, 411-533, 935.63.12.066
