Country of Origin
United States
Shipping Weight
0.064 pounds
Manufacturer P/N

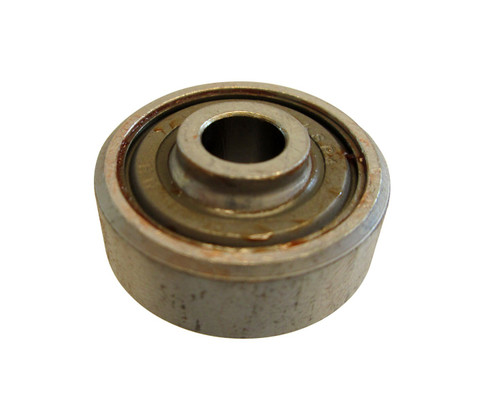

MS27645-4
Schedule B Code
8482.10.5068
Ship Dimensions
3 x 3 x 1 inches
Bore Diameter: 0.2500 Inches Nominal
Overall Outside Diameter: 0.9014 Inches Nominal
Outer Ring Width: 0.3350 Inches Nominal
Inner Ring Width: 0.4840 Inches Nominal
Seal Quantity: 2
Bearing Seal Type: Contact
Alignment Type: Self-Aligning
Load Direction: Radial
Self-Alignment Location: Internal
Standard Tolerance Designation: Afbma Std Tolerance For Airframe Ball Bearings
Special Features: A80 Pct.Full Of Mil-G-81322,Axial Play 0.025 In. Max.,Heat Treat Rings And Balls To Rockwell C 60 To 66 And Stabilized For Operation At 250 Deg.F,10 Deg Self-Aligning In Either Direction Test Kx
Lubrication Material Document And Classification: Mil-G-81322 Mil Spec Single Material Response
Material: Plastic Polytetrafluoroethylene Seal
Material: Steel Comp E52100 Inner Ring
Material: Steel Comp E52100 Outer Ring
Material: Steel Corrosion Resisting Retainer
Material: Steel Comp E51100 Ball Or Steel Comp E52100 Ball
Material Document And Classification: 66 Fed Std All Material Responses Ball
Material Document And Classification: 66 Fed Std Single Material Response Inner Ring
Material Document And Classification: 66 Fed Std Single Material Response Outer Ring
Material Document And Classification: Ams 3652 Assn Std Single Material Response Seal Or Ams 3666 Assn Std Single Material Response Seal
Surface Treatment: Cadmium Exposed Surfaces As Mounted
Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Exposed Surfaces As Mounted
Style Designator: Single Row Self Aligning Single Row Inner Ring Extended Both Sides
