Country of Origin
United States
Shipping Weight
0.02 pounds
Manufacturer P/N
MS27640-8
Schedule B Code
8482.10.5068

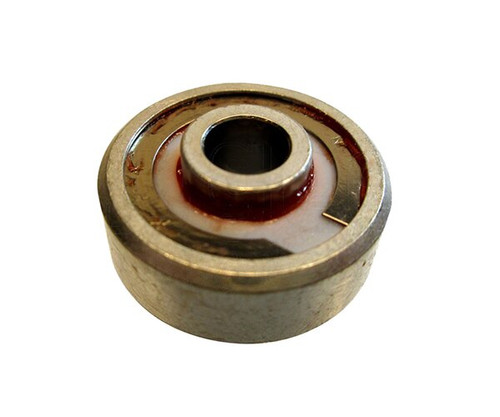

Bore Diameter: 0.5000 Inches Nominal Overall Outside Diameter: 1.6875 Inches Nominal Lubrication Material: Grease Outer Ring Width: 0.5000 Inches Nominal Inner Ring Width: 0.6200 Inches Nominal Seal Quantity: 2 Bearing Seal Type: Contact Load Direction: Radial Standard Tolerance Designation: Afbma Std Tolerance For Airframe Ball Bearings Special Features: 280 Pct. Full Of Mil-G-81322,Internal Radial Clearance 0.000.4- 0.0010 In.,Heat Treat Rings And Balls To Rockwell C 60 To 66 And Stabilized For Operation At 250 Deg. F,Radial And Lateral Eccentricity Inner Ring 0.0010 In. Outer Ring 0.0016 In. Lubrication Material Document And Classification: Mil-G-81322 Mil Spec Single Material Response Material: Plastic Polytetrafluoroethylene Seal Material: Steel Corrosion Resisting Retainer Material: Steel Comp E52100 Ball Or Steel Comp E51100 Ball Material: Steel Comp E52100 Inner Ring Material: Steel Comp E52100 Outer Ring Material Document And Classification: 66 Fed Std All Material Responses Ball Material Document And Classification: 66 Fed Std Single Material Response Inner Ring Material Document And Classification: 66 Fed Std Single Material Response Outer Ring Material Document And Classification: Ams 3652 Assn Std Single Material Response Seal Surface Treatment: Cadmium Ball Surface Treatment: Cadmium Inner Ring Surface Treatment: Cadmium Outer Ring Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Ball Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Inner Ring Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Outer Ring Style Designator: Single Row Inner Ring Extended Both Sides
