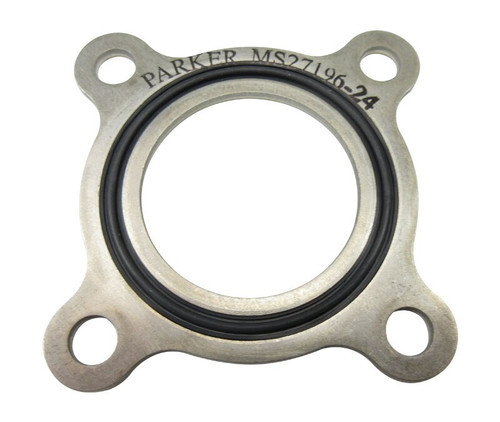

Military Standard MS27196-24 Stainless Steel / Rubber Gasket

Military Standard MS27196-24 Stainless Steel / Rubber Gasket
Military Standard MS27196-24 Stainless Steel / Rubber Gasket
Military Standard MS27196-24 Stainless Steel / Rubber Gasket
Our Part #: SGP136405
Manufacture Part #: MS27196-24
Our Price: $27.77
Price Per Each

Bulk Shop & Save

  • 100 - 249 $23.50 ea.
  • 250 - 499 $22.80 ea.
  • 500 - 999 $22.14 ea.
  • 1000 + $21.51 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5330-01-609-1300

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
MS27196-24
Schedule B Code
4006.90.0000
Pack Quantity
1
Series
MS27196
Material
Stainless Steel/Rubber
  •  Cross-Sectional Shape Style:  Metal And Synthetic Rubber
  •  Hole Diameter:  0.261 Inches Minimum And 0.276 Inches Maximum
  •  Bolt Circle Diameter:  2.558 Inches Minimum And 2.568 Inches Maximum
  •  Overall Width:  3.125 Inches Nominal
  •  Aperture Diameter:  1.367 Inches Minimum And 1.377 Inches Maximum
  •  Outside Corner Radius:  0.266 Inches Minimum And 0.297 Inches Maximum
  •  Outside Corner Inverted Radius:  0.266 Inches Minimum And 0.297 Inches Maximum
  •  Side Radius From Gasket Center:  1.057 Inches Minimum And 1.067 Inches Maximum
  •  Cross-Sectional Thickness:  0.132 Inches Nominal
  •  Gage Ring Thickness:  0.084 Inches Minimum And 0.100 Inches Maximum
  •  Bolt Hole Quantity:  4
  •  Elongation Percentage:  125 Maximum
  •  Material:  Steel Comp 302 Overall And Rubber Fluorocarbon Class Fpm Overall
  •  Material Document And Classification:  Mil-S-5059 Mil Spec 1St Material Response Overall And Mil-R-83248 Ty 2,Cl 1 Mil Spec 2Nd Material Response Overall
  •  Style Designator:  Non-Circular
