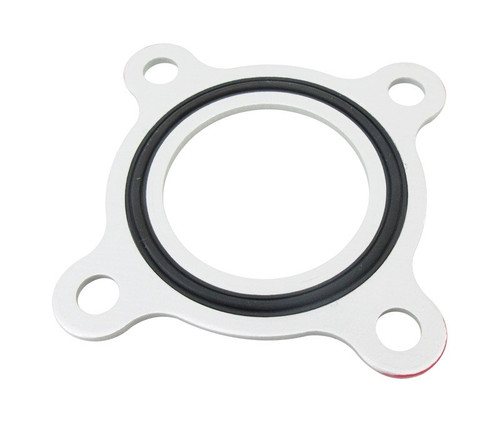

Military Standard MS27194-24 Aluminum / Rubber Gasket

*Unless otherwise noted, values are in inches

Material: Aluminum (alloy 6061) and synthetic rubber (butadiene-acrylonitrile)
Surface Treatment: Anodized
Aperture Diameter Range: 1.367 to 1.377
Bolt Hole Quantity: 4
Bolt Circle Diameter Range: 2.558 to 2.568
Cross-Sectional Shape Style: Metal and synthetic rubber
Gage Ring Thickness Range: .076 to .084
Hole Diameter Range: .261 to .276
Nominal Overall Width: 2.375
Nominal Cross-Sectional Thickness: .120
Nominal Hardness Rating (Durometer): 65
Outside Corner Radius Range: .266 to .297
Outside Corner Inverted Radius Range: .266 to .297
Side Radius From Gasket Center Range: 1.057 to 1.067
Style Designator: Non-circular

NOTE: The MS27194 has been canceled and superseded by SAE-AS27194
