Country of Origin
United States
Shipping Weight
0.5 pounds
Manufacturer P/N

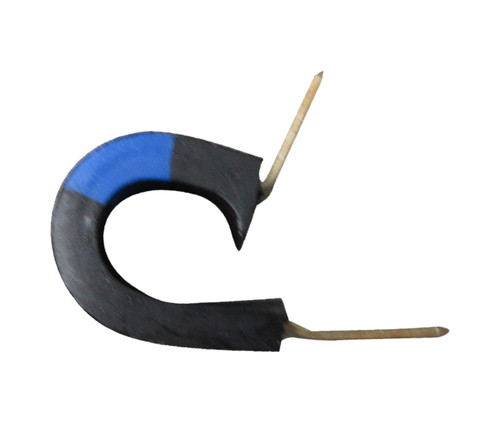

MS21919WDG6
Schedule B Code
7616.10.9090
Ship Dimensions
2 x 1 x 1 inches
Material
Aluminum Alloy/Chloroprene
Tongue Hole Type: Round, Unthreaded Cushioning Environmental Protection: Weather Resistant And Ozone Resistant Overall Width: 0.490 Inches Minimum And 0.510 Inches Maximum Diameter: 0.204 Inches Nominal Material Thickness: 0.032 Inches Nominal Center To Center Distance Between Loop And Mounting Hole: 0.577 Inches Minimum And 0.607 Inches Maximum Distance From Loop Center To Tongue End: 0.810 Inches Nominal Loop Inside Diameter: 0.360 Inches Minimum And 0.390 Inches Maximum Criticality Code Justification: Feat Special Features: Weapons System Essential. Material: Aluminum Alloy 2024 Band Material: Rubber Chloroprene Class Cr Cushion Material Document And Classification: Ams 3209 Assn Std Single Material Response Cushion Material Document And Classification: Qq-A-250/5 Fed Spec Single Material Response Band Surface Treatment: Chromate Band Surface Treatment Document And Classification: Mil-C-5541 Mil Spec Single Treatment Response Band Style Designator: Offset Mount
