NSN
5310-00-771-7406
Product Attributes
Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
EAR99
Manufacturer P/N
MS21076L3N
Schedule B Code
7318.16.0000
Pack Quantity
10
Ship Dimensions
2 x 1 x 1 inches
Series
MS21076
Material
Corrosion-Resistant Steel

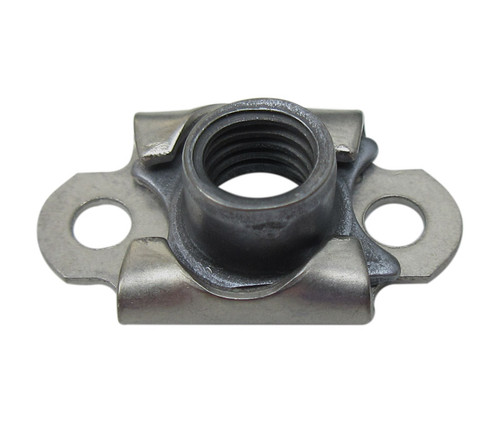

MS21076L3N, as the name suggests, is a self-locking nutplate with a two-lug configuration. This nutplate is made of corrosion resistant steel. It also conforms to the following specifications: AMS 5735, AMS 5737, and AMS 5525. Check the features for more information.
Features
- Material: Iron alloy (660)
- Thread Series Designator: UNJF
- Nominal Thread Size (inches): .190
- Thread Quantity (per inch): 32
- Thread Class: 3B
- Thread Length Range (inches): .553 to .603
- Fastener Length Range (inches): 2.813 to 2.843
- Surface Treatment: Passivate
- Nut Style: Plate (A116)
- Nut Length (inches): .739 (maximum)
- Nut Height (inches): .250 (maximum)
- Plate Thickness (inches): .140 (maximum)
- Plate Width Range(inches): .290 to .416
- Locking Feature: Prevailing Torque (all metal design)
- Lubrication: Dry film
- Nut Mounting Provision: Straight holes
- Mounting Hole Arrangement Style: 2 holes (F38)
- Mounting Hole Diameter Range (inches): .098 to .103
- Distance from Aperture Center to Mounting Hole Center(inches): .245 to .255
- Center to Center Distance Between Mounting Holes Along Length (inches): .498 to .502
- Nominal Temperature Rating (deg;F): 450
